Figure shows the orientations of masses mp=500 g, mQ=400 g and mr=600 g attached on a rotating circular plate at radial

[answerhappygod]

Figure Shows The Orientations Of Masses Mp 500 G Mq 400 G And Mr 600 G Attached On A Rotating Circular Plate At Radial 1 (44.69 KiB) Viewed 47 times

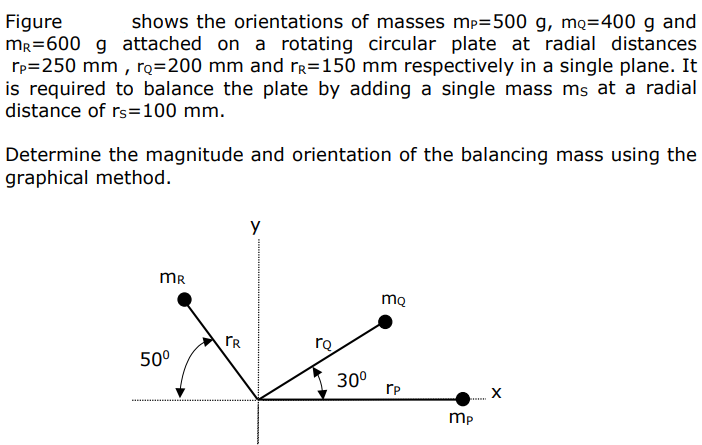

Figure shows the orientations of masses mp=500 g, mQ=400 g and mr=600 g attached on a rotating circular plate at radial distances rp=250 mm , rq=200 mm and rr=150 mm respectively in a single plane. It is required to balance the plate by adding a single mass ms at a radial distance of rs=100 mm. Determine the magnitude and orientation of the balancing mass using the graphical method. у mr mo PR re 50° 30° rp х mp
