1. Question 1 [16] Figure 1.1 shows a three-bar chain mechanism AECB, with link BC rotating clockwise. Points AB is fixe

Post by answerhappygod »

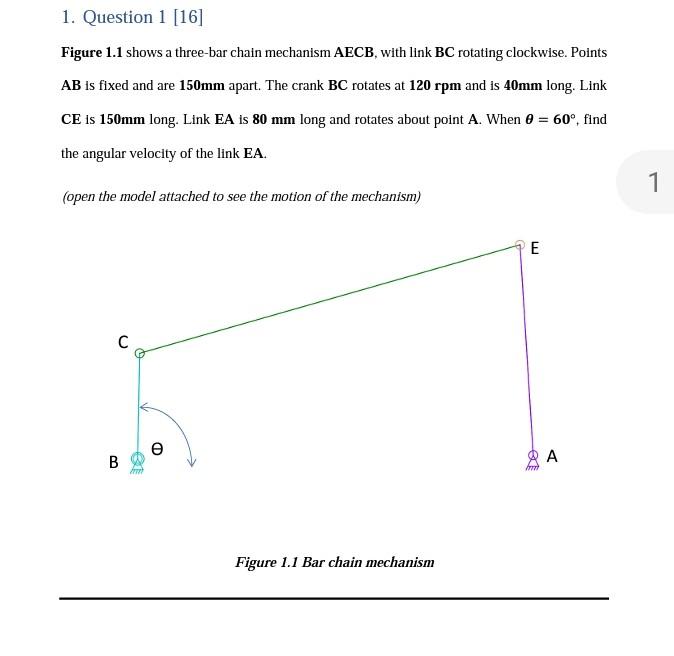

1 Question 1 16 Figure 1 1 Shows A Three Bar Chain Mechanism Aecb With Link Bc Rotating Clockwise Points Ab Is Fixe 1
1 Question 1 16 Figure 1 1 Shows A Three Bar Chain Mechanism Aecb With Link Bc Rotating Clockwise Points Ab Is Fixe 1 (32 KiB) Viewed 39 times
1. Question 1 [16] Figure 1.1 shows a three-bar chain mechanism AECB, with link BC rotating clockwise. Points AB is fixed and are 150mm apart. The crank BC rotates at 120 rpm and is 40mm long. Link CE is 150mm long. Link EA is 80 mm long and rotates about point A. When 0 = 60°, find the angular velocity of the link EA. 1 (open the model attached to see the motion of the mechanism) E C e ө B B A Figure 1.1 Bar chain mechanism
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
