150 mm Motor 3. A belt transmission is driven by a motor hinged at point o in Sketch a. The motor mass is 50 kg and its

Post by answerhappygod »

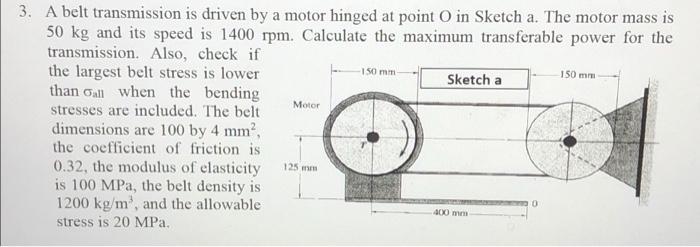

150 Mm Motor 3 A Belt Transmission Is Driven By A Motor Hinged At Point O In Sketch A The Motor Mass Is 50 Kg And Its 1
150 Mm Motor 3 A Belt Transmission Is Driven By A Motor Hinged At Point O In Sketch A The Motor Mass Is 50 Kg And Its 1 (30.56 KiB) Viewed 61 times
150 mm Motor 3. A belt transmission is driven by a motor hinged at point o in Sketch a. The motor mass is 50 kg and its speed is 1400 rpm. Calculate the maximum transferable power for the transmission. Also, check if the largest belt stress is lower 150 mm Sketch a than all when the bending stresses are included. The belt dimensions are 100 by 4 mm?, the coefficient of friction is 0.32, the modulus of elasticity is 100 MPa, the belt density is 1200 kg/m', and the allowable stress is 20 MPa. 125 0 COM
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
