In Figure 3.0, the rope supports a load W and is wound round a barrel 450 mm diameter. A differential band brake acts on

[answerhappygod]

In Figure 3 0 The Rope Supports A Load W And Is Wound Round A Barrel 450 Mm Diameter A Differential Band Brake Acts On 1 (34.58 KiB) Viewed 38 times

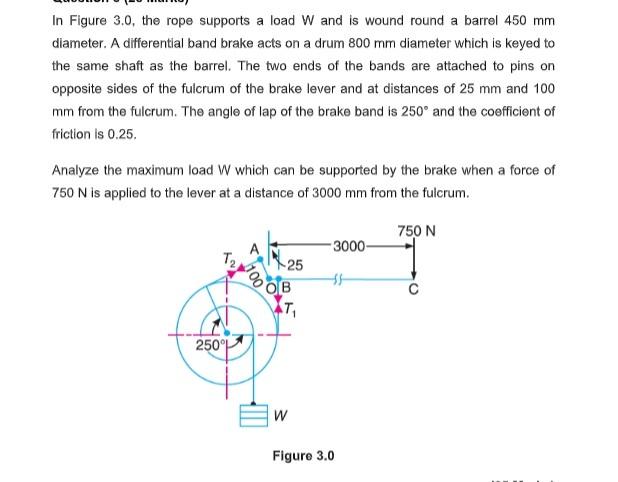

In Figure 3.0, the rope supports a load W and is wound round a barrel 450 mm diameter. A differential band brake acts on a drum 800 mm diameter which is keyed to the same shaft as the barrel. The two ends of the bands are attached to pins on opposite sides of the fulcrum of the brake lever and at distances of 25 mm and 100 mm from the fulcrum. The angle of lap of the brake band is 250° and the coefficient of friction is 0.25. Analyze the maximum load W which can be supported by the brake when a force of 750 N is applied to the lever at a distance of 3000 mm from the fulcrum. 750 N 3000 700 25 카 250° W Figure 3.0
