Q-1 A Carnot heat engine receives heat at 727 °C and rejects the waste heat to the environment at 35 °C. The entire work

[answerhappygod]

Q 1 A Carnot Heat Engine Receives Heat At 727 C And Rejects The Waste Heat To The Environment At 35 C The Entire Work 1 (31.24 KiB) Viewed 29 times

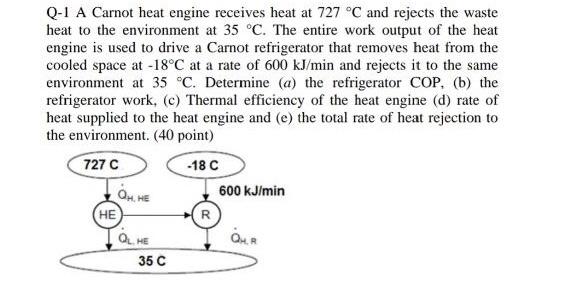

Q-1 A Carnot heat engine receives heat at 727 °C and rejects the waste heat to the environment at 35 °C. The entire work output of the heat engine is used to drive a Carnot refrigerator that removes heat from the cooled space at -18°C at a rate of 600 kJ/min and rejects it to the same environment at 35 °C. Determine (a) the refrigerator COP, (b) the refrigerator work, (c) Thermal efficiency of the heat engine (d) rate of heat supplied to the heat engine and (e) the total rate of heat rejection to the environment. (40 point) 727 C -18 C Q 600 kJ/min HE HE R OLHE Qua 35 C
