Question 2 Not yet answered Marked out of 16.00 Flag question The single shoe block brake shown in the figure has a face

Post by answerhappygod »

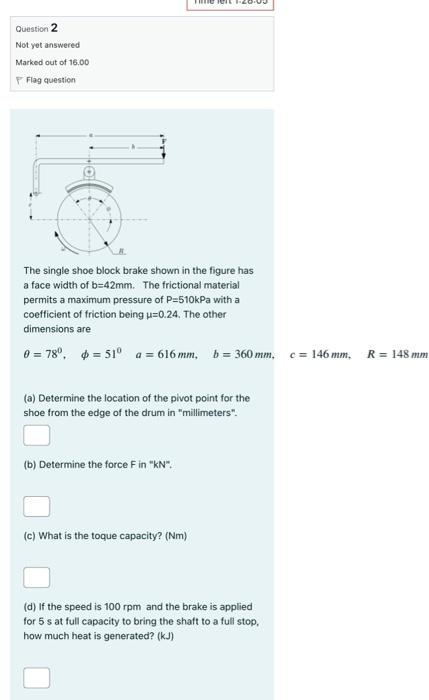

Question 2 Not Yet Answered Marked Out Of 16 00 Flag Question The Single Shoe Block Brake Shown In The Figure Has A Face 1
Question 2 Not Yet Answered Marked Out Of 16 00 Flag Question The Single Shoe Block Brake Shown In The Figure Has A Face 1 (25.12 KiB) Viewed 38 times
Question 2 Not yet answered Marked out of 16.00 Flag question The single shoe block brake shown in the figure has a face width of b=42mm. The frictional material permits a maximum pressure of P=510kPa with a coefficient of friction being u=0.24. The other dimensions are 0 = 780.0 = 51° a = 616 mm, b = 360 mm, c = 146 mm. R = 148 mm (a) Determine the location of the pivot point for the shoe from the edge of the drum in "millimeters". (b) Determine the force F in "kN”. (c) What is the toque capacity? (Nm) (d) If the speed is 100 rpm and the brake is applied for 5 s at full capacity to bring the shaft to a full stop. how much heat is generated? (kJ)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
