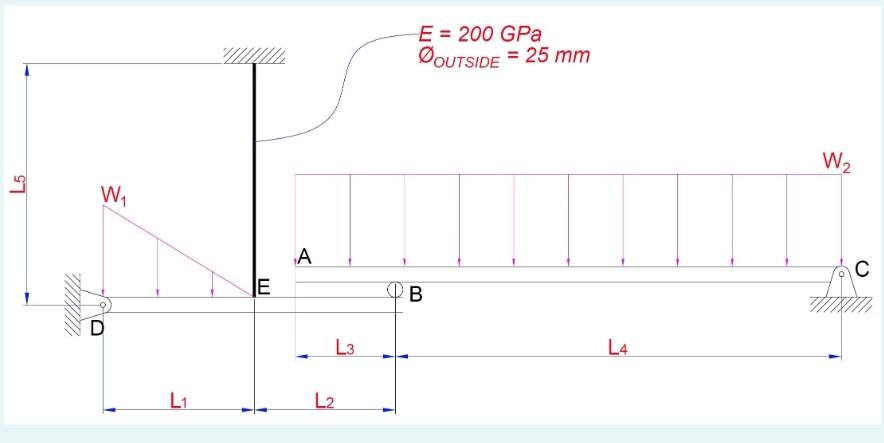

Beams A-B-C and D-E-B are supported by pins at C and D and by a steel rod at E. There is a roller connection between the beams at B.
GIVEN:
L1 = 4 m W1 = 5 kN/m
L2 = 2 m W2 = 15 kN/m
L3 = 1.5 m
L4 = 10 m
L5 = 3 m
1.) Write the Shear and Moment Diagrams for:
a. Beam A-B-C
b. Beam D-E-B
2.) Draw the Shear and Moment Diagrams for:
a. Beam A-B-C
b. Beam D-E-B
c. What is the maximum shear in Beam D-E-B?
d. What is the maximum moment in Beam A-B-C?
3.) If 2 moving loads, 50 kN and 40 kN spaced 3 meters, pass through beam A-B-C,
a. What is the maximum shear?
b. What is the maximum moment?
