13. A stainless steel column of diameter 50 mm is fixed at both ends as shown in figure. Determine the maximum axial loa

Post by answerhappygod »

13 A Stainless Steel Column Of Diameter 50 Mm Is Fixed At Both Ends As Shown In Figure Determine The Maximum Axial Loa 1
13 A Stainless Steel Column Of Diameter 50 Mm Is Fixed At Both Ends As Shown In Figure Determine The Maximum Axial Loa 1 (31.59 KiB) Viewed 34 times

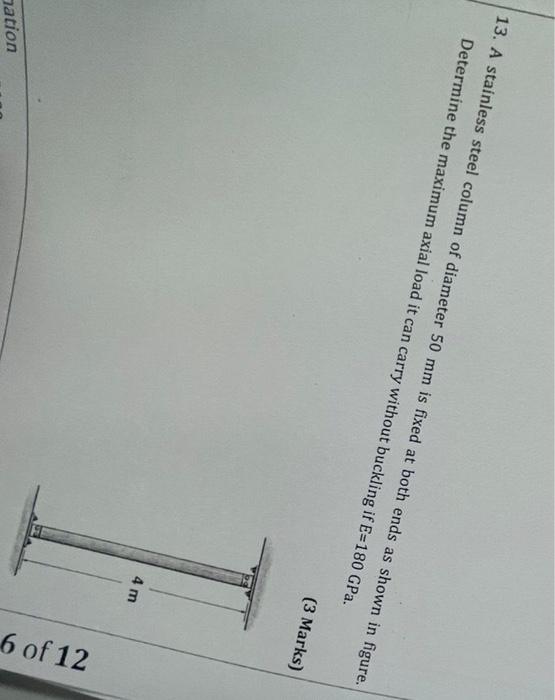

13. A stainless steel column of diameter 50 mm is fixed at both ends as shown in figure. Determine the maximum axial load it can carry without buckling if E=180 GPa. (3 Marks) T 4 m 6 of 12 zation
