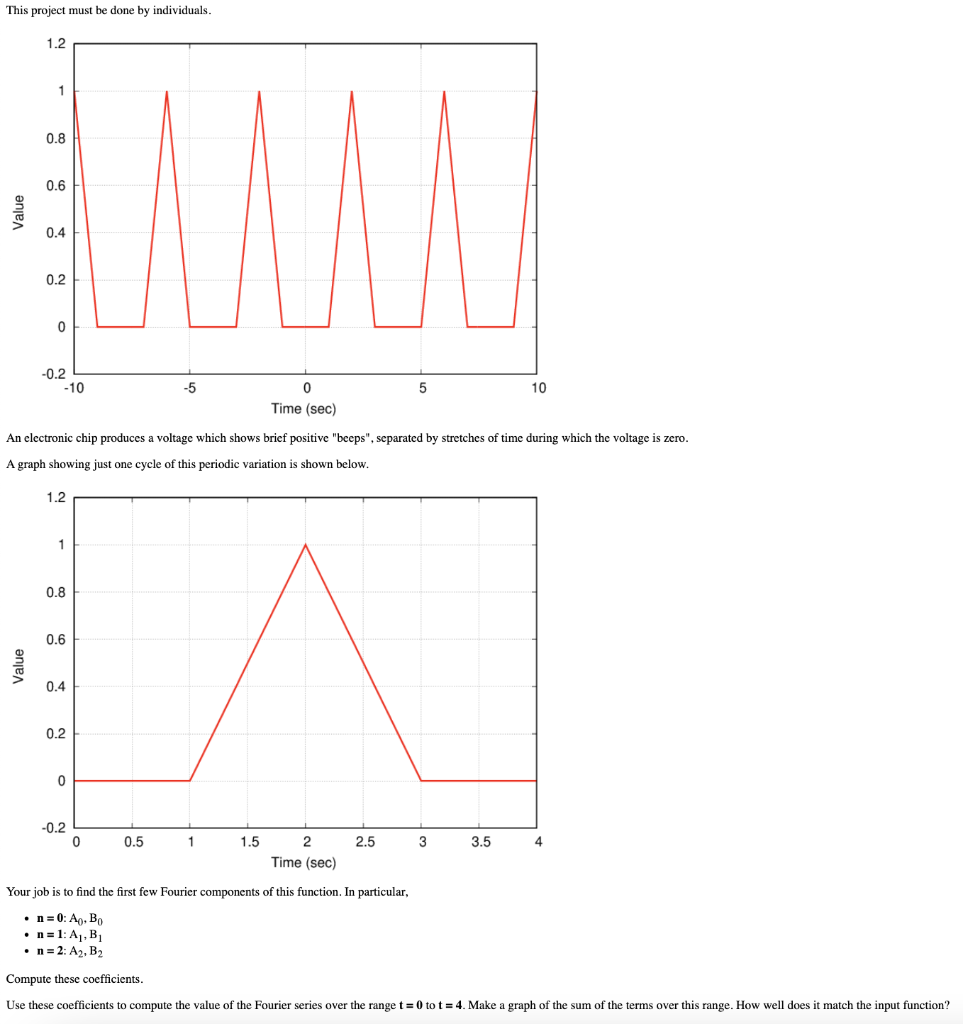

This project must be done by individuals. 1.2 1 0.8 0.6 Value 0.4 0.2 0 -0.2 -10 -5 5 10 0 Time (sec) An electronic chip

[answerhappygod]

This Project Must Be Done By Individuals 1 2 1 0 8 0 6 Value 0 4 0 2 0 0 2 10 5 5 10 0 Time Sec An Electronic Chip 1 (135.95 KiB) Viewed 30 times

This project must be done by individuals. 1.2 1 0.8 0.6 Value 0.4 0.2 0 -0.2 -10 -5 5 10 0 Time (sec) An electronic chip produces a voltage which shows brief positive "beeps", separated by stretches of time during which the voltage is zero. A graph showing just one cycle of this periodic variation is shown below. 1.2 1 0.8 0.6 Value 0.4 0.2 0 -0.2 0 0.5 1 1.5 2 2.5 3 3.5 4 Time (sec) Your job is to find the first few Fourier components of this function. In particular, . n = 0: A, BO • n=1: A,B . n = 2: A2, B2 Compute these coefficients. Use these coefficients to compute the value of the Fourier series over the range t = 0 tot = 4. Make a graph of the sum of the terms over this range. How well does it match the input function?
