2.1 During an experiment, a human sitting in front of a switch reacts to an optical signal by lowering the switch. The t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2.1 During an experiment, a human sitting in front of a switch reacts to an optical signal by lowering the switch. The t

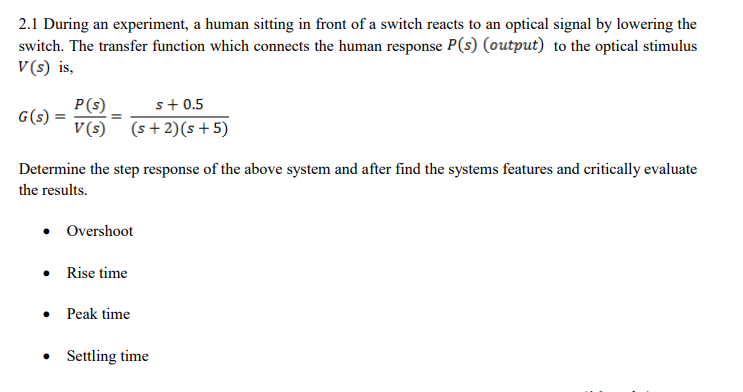

2.1 During an experiment, a human sitting in front of a switch reacts to an optical signal by lowering the switch. The transfer function which connects the human response P(s) (output) to the optical stimulus V(s) is, G(s) P(5) s+ 0.5 V(s) (s+2)(s +5) Determine the step response of the above system and after find the systems features and critically evaluate the results. • Overshoot • Rise time • Peak time Settling time
