please solve this VLSI question.
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
please solve this VLSI question.
please solve this VLSI question.

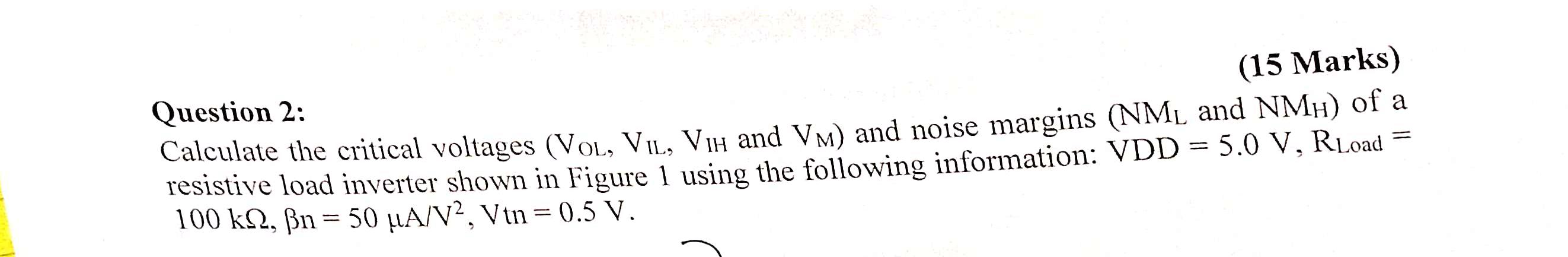

= Question 2: (15 Marks) Calculate the critical voltages (VoL, VI., Vih and VM) and noise margins (NM_ and NMH) of a resistive load inverter shown in Figure 1 using the following information: VDD = 5.0 V, Rload 100 kN, Bn = 50 HA/V2, Vtn = 0.5 V. = =
VDD 20 Rioad Vout VOL Vin GND Figure 1 = Vo vo d
= Question 2: (15 Marks) Calculate the critical voltages (VoL, VI., Vih and VM) and noise margins (NM_ and NMH) of a resistive load inverter shown in Figure 1 using the following information: VDD = 5.0 V, Rload 100 kN, Bn = 50 HA/V2, Vtn = 0.5 V. = =
VDD 20 Rioad Vout VOL Vin GND Figure 1 = Vo vo d
