Assume that you have a single-phase voltage source in the form of V=100 sin (wt+Tf/4), where the frequency is 60Hz. 10 M

Post by answerhappygod »

Assume That You Have A Single Phase Voltage Source In The Form Of V 100 Sin Wt Tf 4 Where The Frequency Is 60hz 10 M 1
Assume That You Have A Single Phase Voltage Source In The Form Of V 100 Sin Wt Tf 4 Where The Frequency Is 60hz 10 M 1 (52.08 KiB) Viewed 32 times

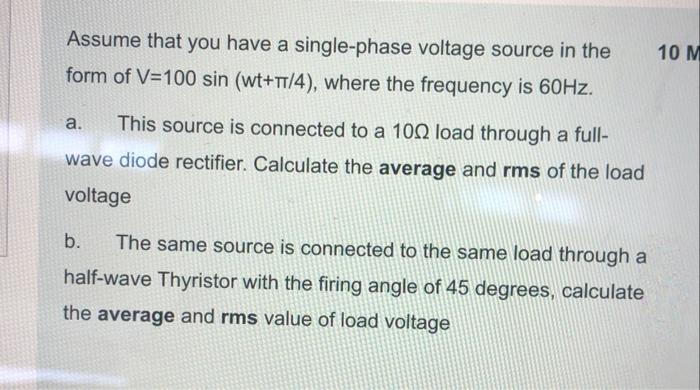

Assume that you have a single-phase voltage source in the form of V=100 sin (wt+Tf/4), where the frequency is 60Hz. 10 M a. This source is connected to a 100 load through a full- wave diode rectifier. Calculate the average and rms of the load voltage b. The same source is connected to the same load through a half-wave Thyristor with the firing angle of 45 degrees, calculate the average and rms value of load voltage
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
