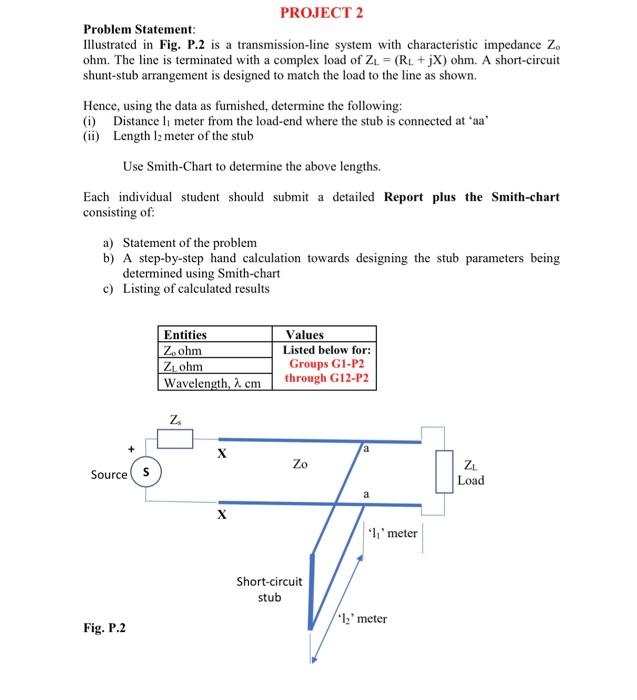

PROJECT 2 Problem Statement: Illustrated in Fig. P.2 is a transmission-line system with characteristic impedance Z ohm. The line is terminated with a complex load of Z1 = (RL + jX) ohm. A short-circuit shunt-stub arrangement is designed to match the load to the line as shown. Hence, using the data as furnished, determine the following: (1) Distance li meter from the load-end where the stub is connected at 'aa' (ii) Length 12 meter of the stub Use Smith-Chart to determine the above lengths. Each individual student should submit a detailed Report plus the Smith-chart consisting of: a) Statement of the problem b) A step-by-step hand calculation towards designing the stub parameters being determined using Smith-chart c) Listing of calculated results Entities Z ohm Zohm Wavelength, 2. cm Values Listed below for: Groups G1-P2 through G12-P2 Z X a Zo Sources Z Load a X *l,' meter Short-circuit stub "l2 meter Fig. P.2
Group G9-P2 Zo: 250 ohm ZL: (500+ j500) ohm Wavelength (a): 1 meter 1
