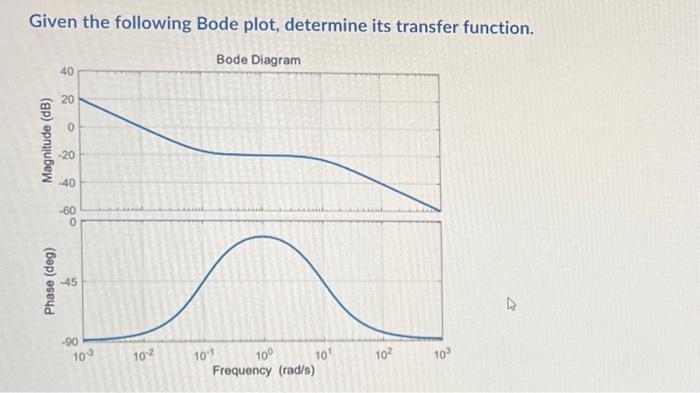

Given the following Bode plot, determine its transfer function. Bode Diagram 40 20 0 Magnitude (dB) -20 -40 -60 0 Phase
