Consider the closed-loop system shown below. R(S) YS A 1 s2+k S S. = If the system is subjected to a step input r(t) = 2

Post by answerhappygod »

Consider The Closed Loop System Shown Below R S Ys A 1 S2 K S S If The System Is Subjected To A Step Input R T 2 1
Consider The Closed Loop System Shown Below R S Ys A 1 S2 K S S If The System Is Subjected To A Step Input R T 2 1 (183.43 KiB) Viewed 37 times

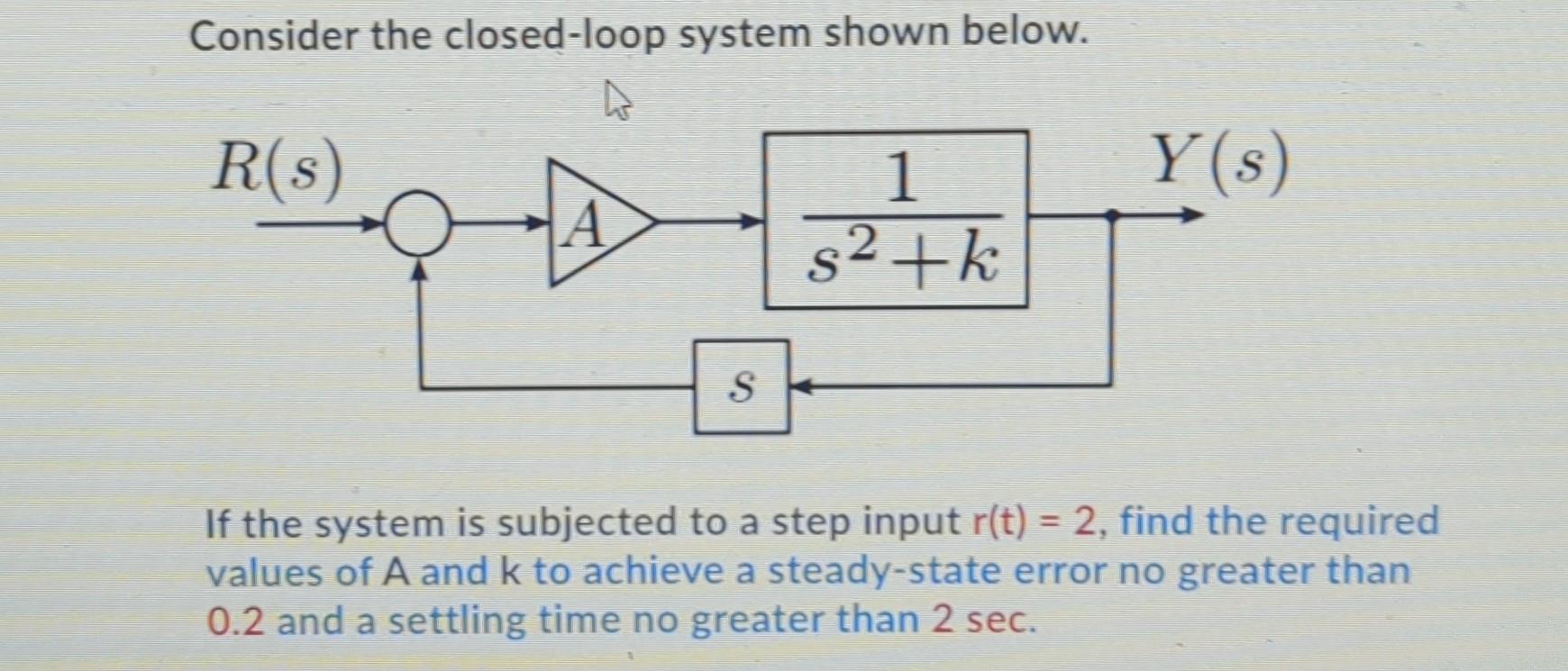

Consider the closed-loop system shown below. R(S) YS A 1 s2+k S S. = If the system is subjected to a step input r(t) = 2, find the required values of A and k to achieve a steady-state error no greater than 0.2 and a settling time no greater than 2 sec.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
