QUESTION 5 For the transsmision line below find the average incident Power pi and the average refelcted Power P ave Assu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

QUESTION 5 For the transsmision line below find the average incident Power pi and the average refelcted Power P ave Assu

Post by answerhappygod »

Question 5 For The Transsmision Line Below Find The Average Incident Power Pi And The Average Refelcted Power P Ave Assu 1
Question 5 For The Transsmision Line Below Find The Average Incident Power Pi And The Average Refelcted Power P Ave Assu 1 (109.58 KiB) Viewed 34 times

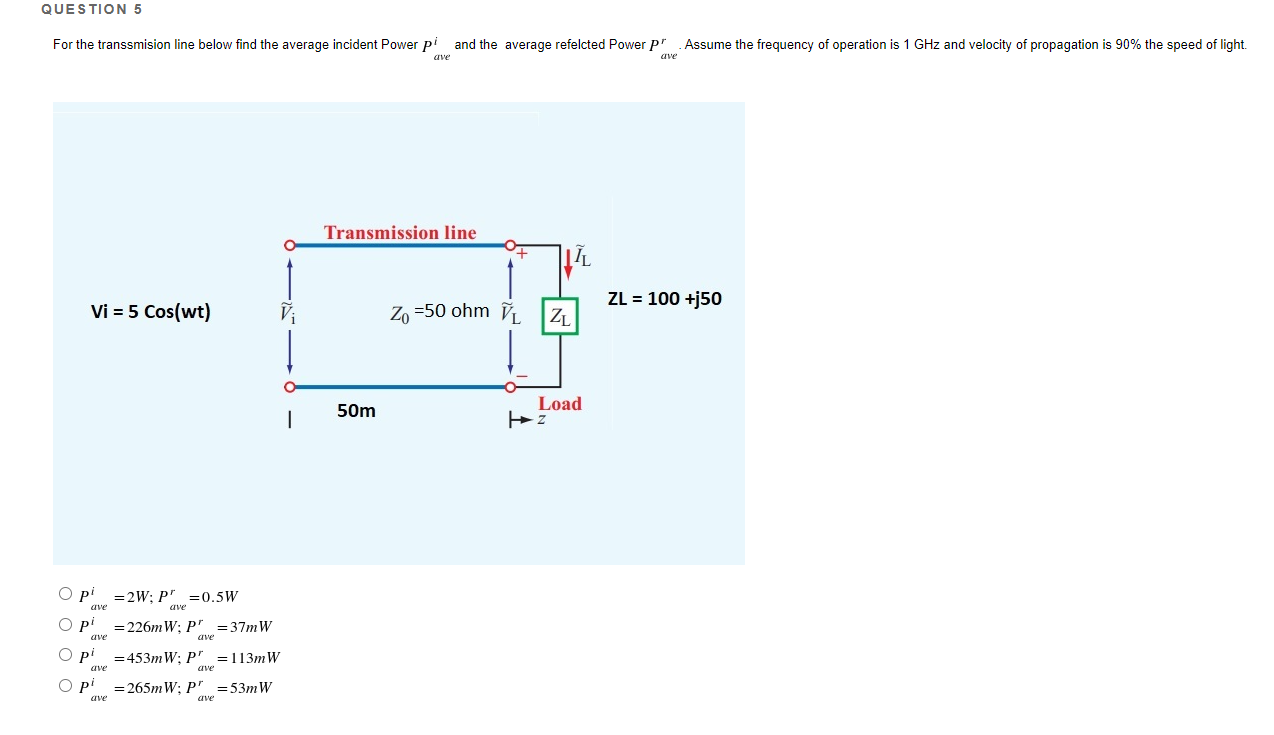

QUESTION 5 For the transsmision line below find the average incident Power pi and the average refelcted Power P ave Assume the frequency of operation is 1 GHz and velocity of propagation is 90% the speed of light. ave Transmission line + 117 ZL = 100 +j50 Vi = 5 Cos(wt) Zo =50 ohm ÕL ZL 50m Load 2 Opl =2W;P' =0.5W P = 226mW: P = 37m W ave Uwe ave = 453mW: P = 113mW ave = 265mW: P' = 53mW p! ave ave
