Problem 6-6: Consider the capacitive displacement transducer in Figure 6.26 (a series RC circuit) to be governed by the

Post by answerhappygod »

Problem 6 6 Consider The Capacitive Displacement Transducer In Figure 6 26 A Series Rc Circuit To Be Governed By The 1
Problem 6 6 Consider The Capacitive Displacement Transducer In Figure 6 26 A Series Rc Circuit To Be Governed By The 1 (18.49 KiB) Viewed 30 times

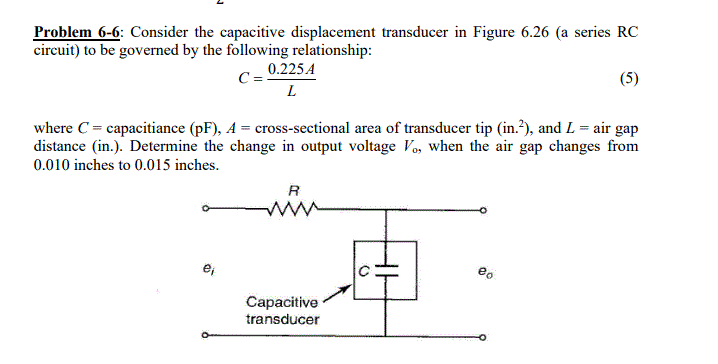

Problem 6-6: Consider the capacitive displacement transducer in Figure 6.26 (a series RC circuit) to be governed by the following relationship: 0.225 A C= (5) L where C = capacitiance (PF), A = cross-sectional area of transducer tip (in.”), and L = air gap distance (in.). Determine the change in output voltage Vo, when the air gap changes from 0.010 inches to 0.015 inches. R e TH eo Capacitive transducer
