Q1. The input to a linear circuit is the voltage, V;. The output is the voltage. V. - The transfer function of the circu

Post by answerhappygod »

Q1 The Input To A Linear Circuit Is The Voltage V The Output Is The Voltage V The Transfer Function Of The Circu 1
Q1 The Input To A Linear Circuit Is The Voltage V The Output Is The Voltage V The Transfer Function Of The Circu 1 (22.46 KiB) Viewed 37 times

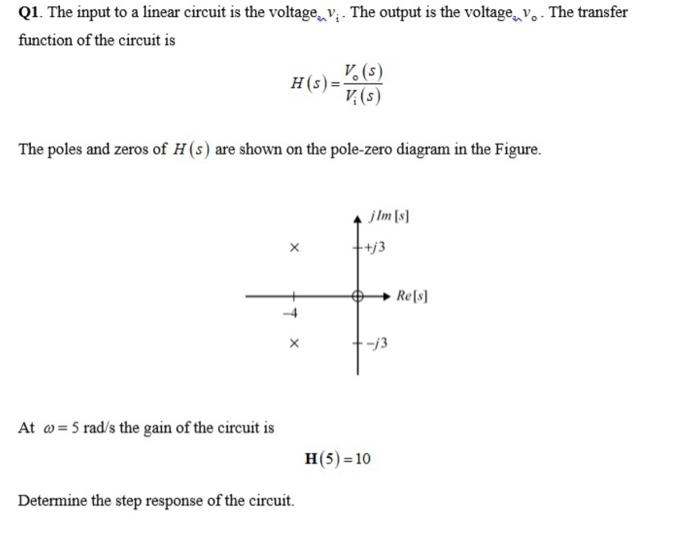

Q1. The input to a linear circuit is the voltage, V;. The output is the voltage. V. - The transfer function of the circuit is H(S) V. (s) V (5) The poles and zeros of H(s) are shown on the pole-zero diagram in the Figure. Im(s) +3 Re[8] -13 At w = 5 rad/s the gain of the circuit is H(5) = 10 Determine the step response of the circuit.
