Q7. The circuit shown in Figure (a) can be reduced to the circuit shown in Figure (b) using source transformations and e

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q7. The circuit shown in Figure (a) can be reduced to the circuit shown in Figure (b) using source transformations and e

Post by answerhappygod »

Q7 The Circuit Shown In Figure A Can Be Reduced To The Circuit Shown In Figure B Using Source Transformations And E 1
Q7 The Circuit Shown In Figure A Can Be Reduced To The Circuit Shown In Figure B Using Source Transformations And E 1 (23.75 KiB) Viewed 34 times

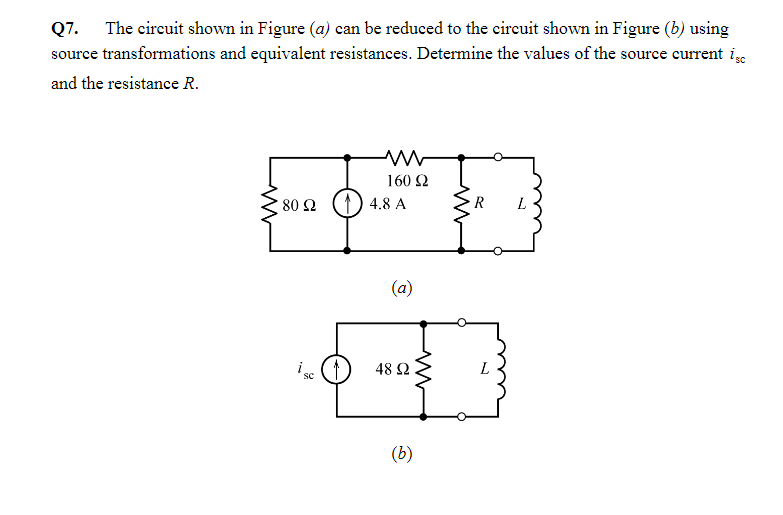

Q7. The circuit shown in Figure (a) can be reduced to the circuit shown in Figure (b) using source transformations and equivalent resistances. Determine the values of the source current ise and the resistance R. w 160 22 4.8 A 80 22 ER L (a) isc -- 1 48 92 } L SC (6)
