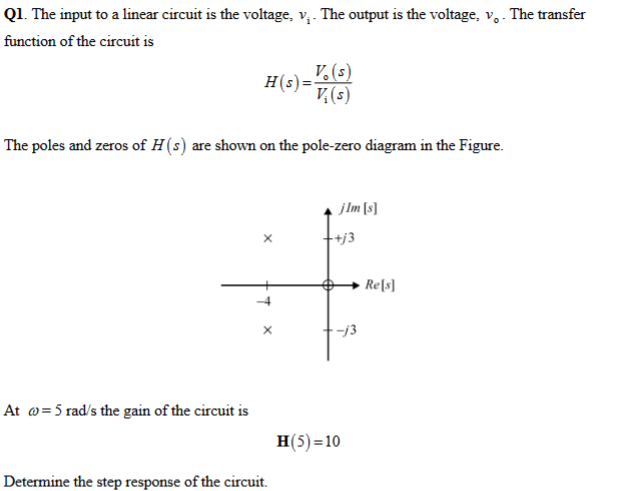

Q1. The input to a linear circuit is the voltage, v. The output is the voltage, V. . The transfer function of the circuit is H(s)= V (5) The poles and zeros of H(s) are shown on the pole-zero diagram in the Figure. Im [5] -+j3 E Re[s] -13 At @= 5 rad/s the gain of the circuit is H(5)=10 Determine the step response of the circuit.
