Q1. The input to a linear circuit is the voltage, V;. The output is the voltage, V.. The transfer function of the circui

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q1. The input to a linear circuit is the voltage, V;. The output is the voltage, V.. The transfer function of the circui

Post by answerhappygod »

Q1 The Input To A Linear Circuit Is The Voltage V The Output Is The Voltage V The Transfer Function Of The Circui 1
Q1 The Input To A Linear Circuit Is The Voltage V The Output Is The Voltage V The Transfer Function Of The Circui 1 (21.85 KiB) Viewed 21 times

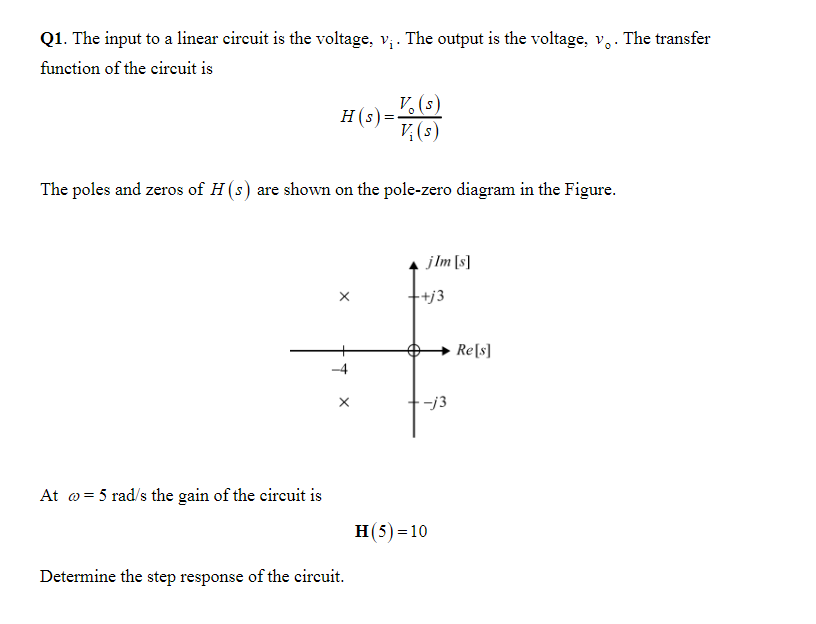

Q1. The input to a linear circuit is the voltage, V;. The output is the voltage, V.. The transfer function of the circuit is V.(s) H(S)= н VS) The poles and zeros of H(s) are shown on the pole-zero diagram in the Figure. jim [s] х +3 : Re[s] x A -13 At m= 5 rad's the gain of the circuit is H(5) = 10 Determine the step response of the circuit.
