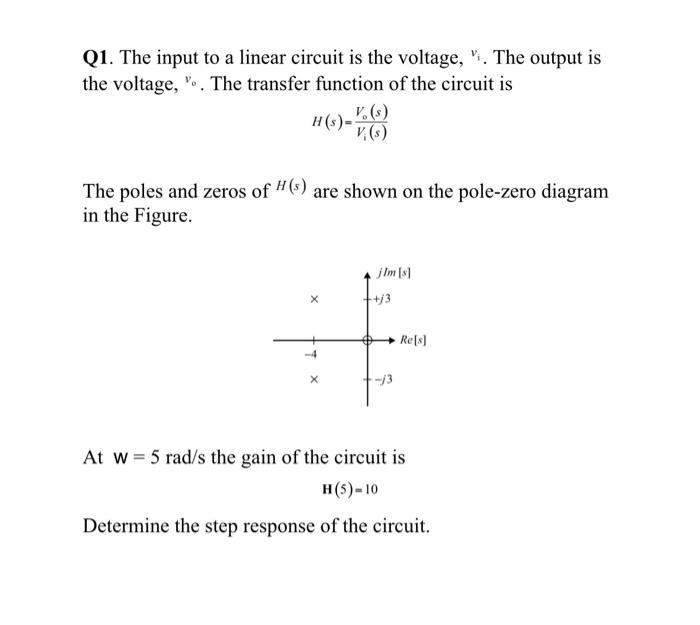

Q1. The input to a linear circuit is the voltage, ". The output is the voltage,. The transfer function of the circuit is V. (s) H(s)- V.() The poles and zeros of H(s) are shown on the pole-zero diagram in the Figure. +3 Re [8] -/3 At w = 5 rad/s the gain of the circuit is H(5) - 10 Determine the step response of the circuit.
