Problem A: In the circuit below, determine Va and Vo. Then, if Vcc= 10V, determine the maximum amplitude for Vy so the t

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Problem A: In the circuit below, determine Va and Vo. Then, if Vcc= 10V, determine the maximum amplitude for Vy so the t

Post by answerhappygod »

Problem A In The Circuit Below Determine Va And Vo Then If Vcc 10v Determine The Maximum Amplitude For Vy So The T 1
Problem A In The Circuit Below Determine Va And Vo Then If Vcc 10v Determine The Maximum Amplitude For Vy So The T 1 (22.31 KiB) Viewed 18 times

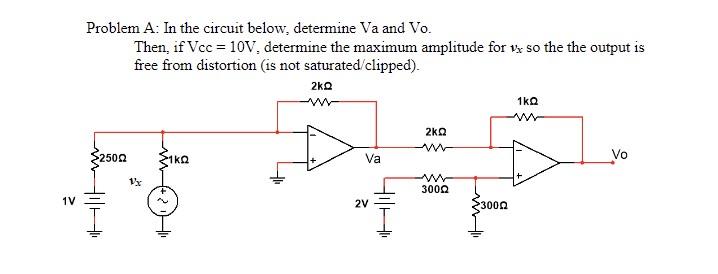

Problem A: In the circuit below, determine Va and Vo. Then, if Vcc= 10V, determine the maximum amplitude for Vy so the the output is free from distortion (is not saturated/clipped). 2kg 1kg W 2ΚΩ 2500 Va Vo 1K 1x W 3000 1V 2V 3000
