F F D The geometry of this problem is a quarter section of a dielectric circular pipe with Inner radius r; = 4 and outer

[answerhappygod]

F F D The Geometry Of This Problem Is A Quarter Section Of A Dielectric Circular Pipe With Inner Radius R 4 And Outer 1 (29.54 KiB) Viewed 18 times

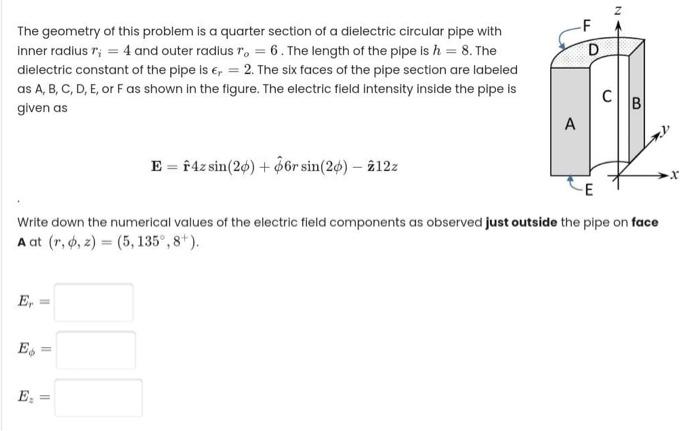

F F D The geometry of this problem is a quarter section of a dielectric circular pipe with Inner radius r; = 4 and outer radius T. = 6. The length of the pipe is h = 8. The dielectric constant of the pipe is er = 2. The six faces of the pipe section are labeled as A, B, C, D, E, or Fas shown in the figure. The electric field intensity inside the pipe is given as C B A E = f4z sin(20) + Ø6r sin(26)- 2122 . m Write down the numerical values of the electric field components as observed just outside the pipe on face A at (6,0,2) = (5, 135°, 8+). E, 1 E E
