CHAPTER 4: BJT DC ANALYSIS EXAMPLE 4.7 a. Draw the load line for the network of Fig. 4.26a on the characteristics for th
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
CHAPTER 4: BJT DC ANALYSIS EXAMPLE 4.7 a. Draw the load line for the network of Fig. 4.26a on the characteristics for th

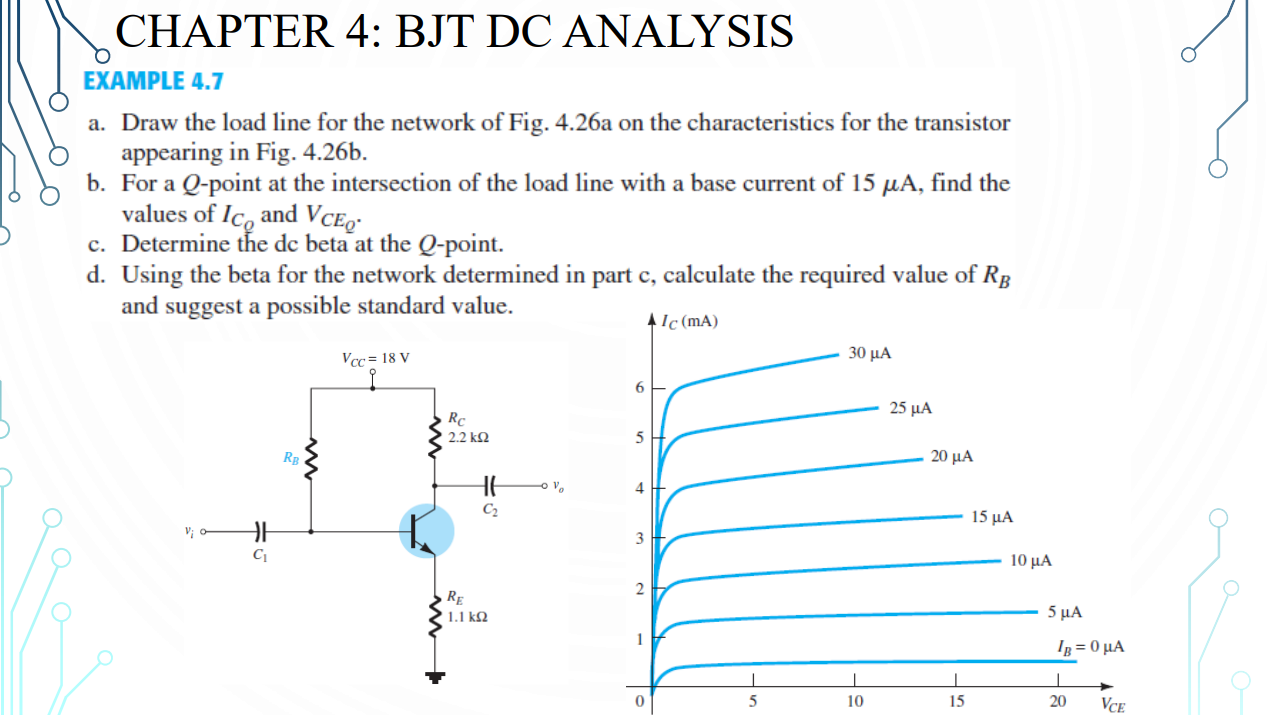

CHAPTER 4: BJT DC ANALYSIS EXAMPLE 4.7 a. Draw the load line for the network of Fig. 4.26a on the characteristics for the transistor appearing in Fig. 4.26b. b. For a Q-point at the intersection of the load line with a base current of 15 uА, find the values of Ic, and VCE, c. Determine tħe de beta at the Q-point. d. Using the beta for the network determined in part c, calculate the required value of Rg and suggest a possible standard value. AIC (MA) Vcc= 18 V 30 μΑ 6 25 μΑ Rc 2.2 k22 5 RB 20 μΑ ovo 4 H0 C2 15 μΑ Vi OH C1 3 10 μΑ 2 RE 1.1 k 2 5 μΑ 1 IB = 0 μΑ 0 5 10 15 20 VCE
