c) 2-wire d.c. distributor AB is fed from both ends. At feeding point A, the voltage is maintained at 250 V and at B 240
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
c) 2-wire d.c. distributor AB is fed from both ends. At feeding point A, the voltage is maintained at 250 V and at B 240

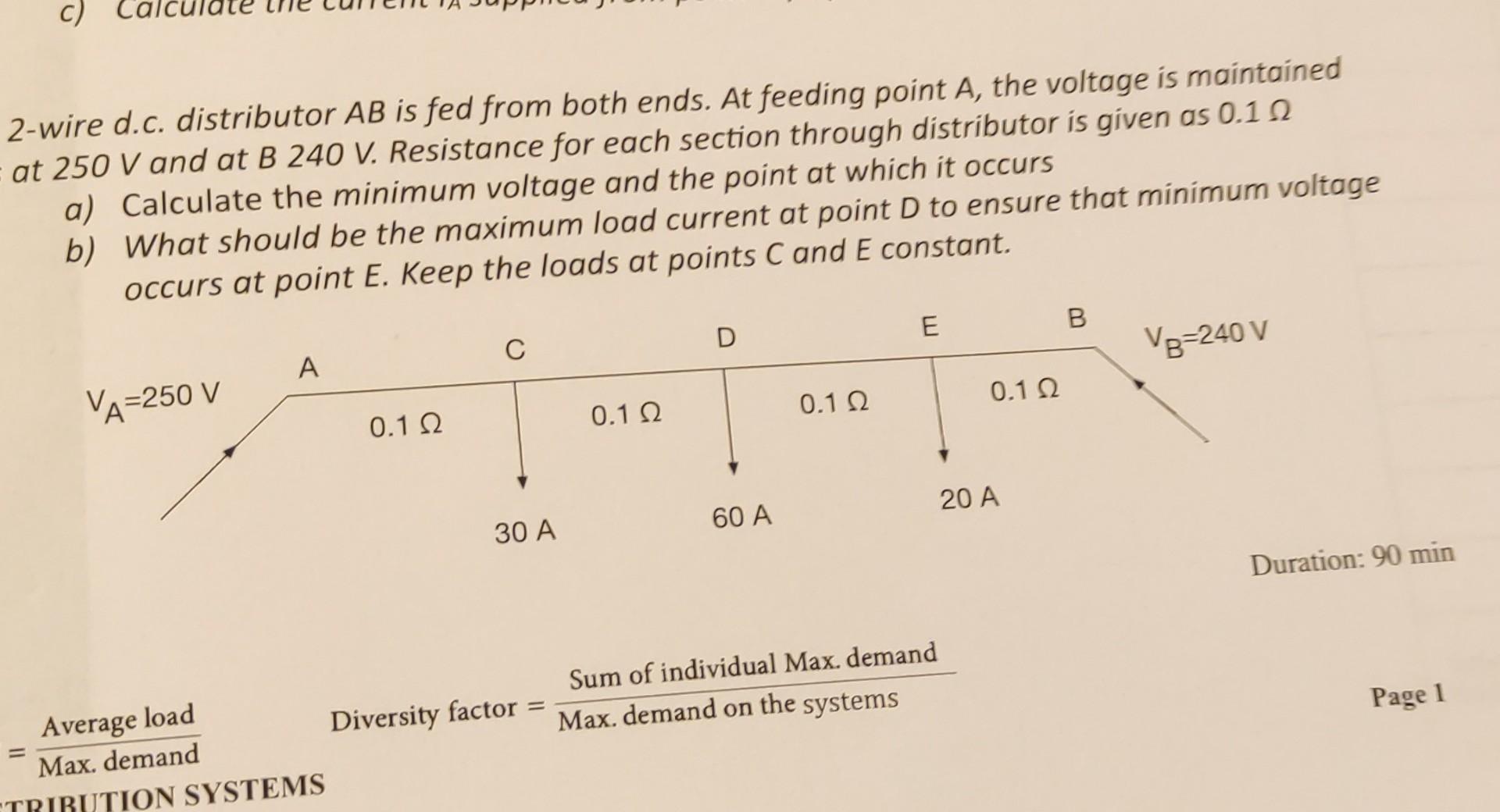

c) 2-wire d.c. distributor AB is fed from both ends. At feeding point A, the voltage is maintained at 250 V and at B 240 V. Resistance for each section through distributor is given as 0.12 a) Calculate the minimum voltage and the point at which it occurs b) What should be the maximum load current at point D to ensure that minimum voltage occurs at point E. Keep the loads at points C and E constant. D E B с V8=240 V A VA=250 V 0.12 0.112 0.112 0.1 22 20 A 60 A 30 A Duration: 90 min Page 1 Average load Sum of individual Max. demand Diversity factor = Max. demand Max. demand on the systems TRIBUTION SYSTEMS
