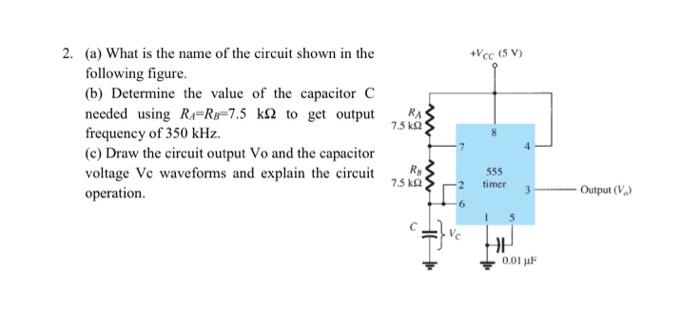

+Vcc (5) 2. (a) What is the name of the circuit shown in the following figure. (b) Determine the value of the capacitor C needed using Rx-R=7.5 k 2 to get output frequency of 350 kHz. (e) Draw the circuit output Vo and the capacitor voltage Vc waveforms and explain the circuit operation. RA 7.5k RA 7.5 ΚΩ 555 timer 3 -Output (V) 6 AB 0.01F

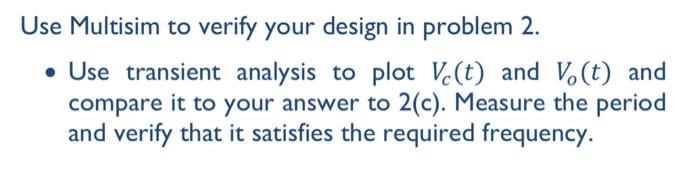

Use Multisim to verify your design in problem 2. • Use transient analysis to plot V(t) and V.(t) and compare it to your answer to 2(c). Measure the period and verify that it satisfies the required frequency.
