q=1.6x10-19C, KBT/q= 26mV, In=1350cm²/(V.s), Mp=480cm²/(V.s), n;=1x1010/cm3 (@T=300K) We have an n-type silicon bar, who

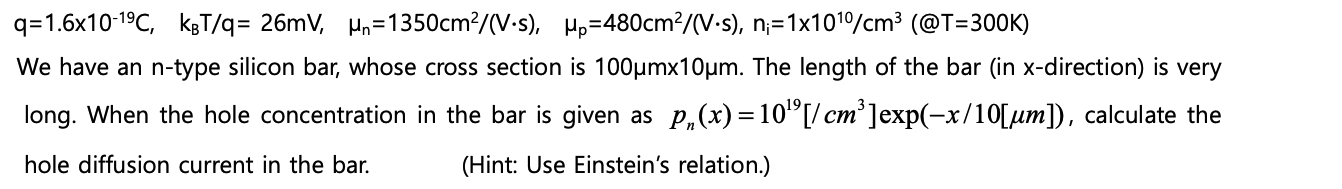

q=1.6x10-19C, KBT/q= 26mV, In=1350cm²/(V.s), Mp=480cm²/(V.s), n;=1x1010/cm3 (@T=300K) We have an n-type silicon bar, whose cross section is 100umx10um. The length of the bar (in x-direction) is very long. When the hole concentration in the bar is given as p.,(x)= 10''[/cmº]exp(-x/10[um]), calculate the hole diffusion current in the bar. (Hint: Use Einstein's relation.)
