Q1) (25 Points) The current i(t) flowing through an electrical element at a point is given as below. ¿) 5 Agro t (s] 2 3

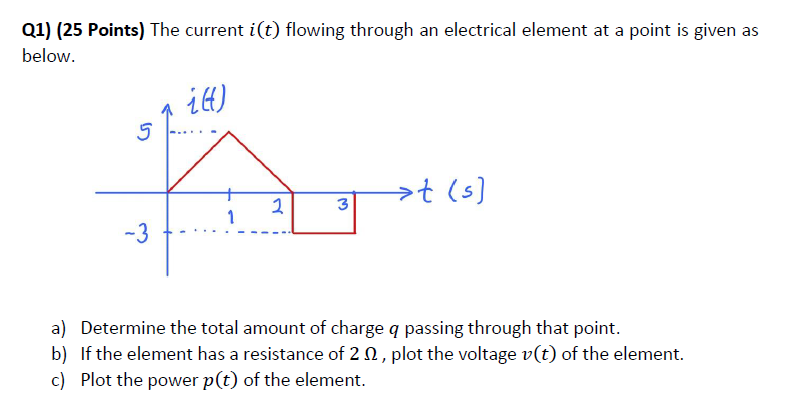

Q1) (25 Points) The current i(t) flowing through an electrical element at a point is given as below. ¿) 5 Agro t (s] 2 3 1 --3 a) Determine the total amount of charge q passing through that point. b) If the element has a resistance of 22, plot the voltage v(t) of the element. c) Plot the power p(t) of the element.
