[TOTAL MARKS:20] QUESTION 2 Find the Landw, in Figure 3 using superposition method 100, 200 and 400 are the internal res

[answerhappygod]

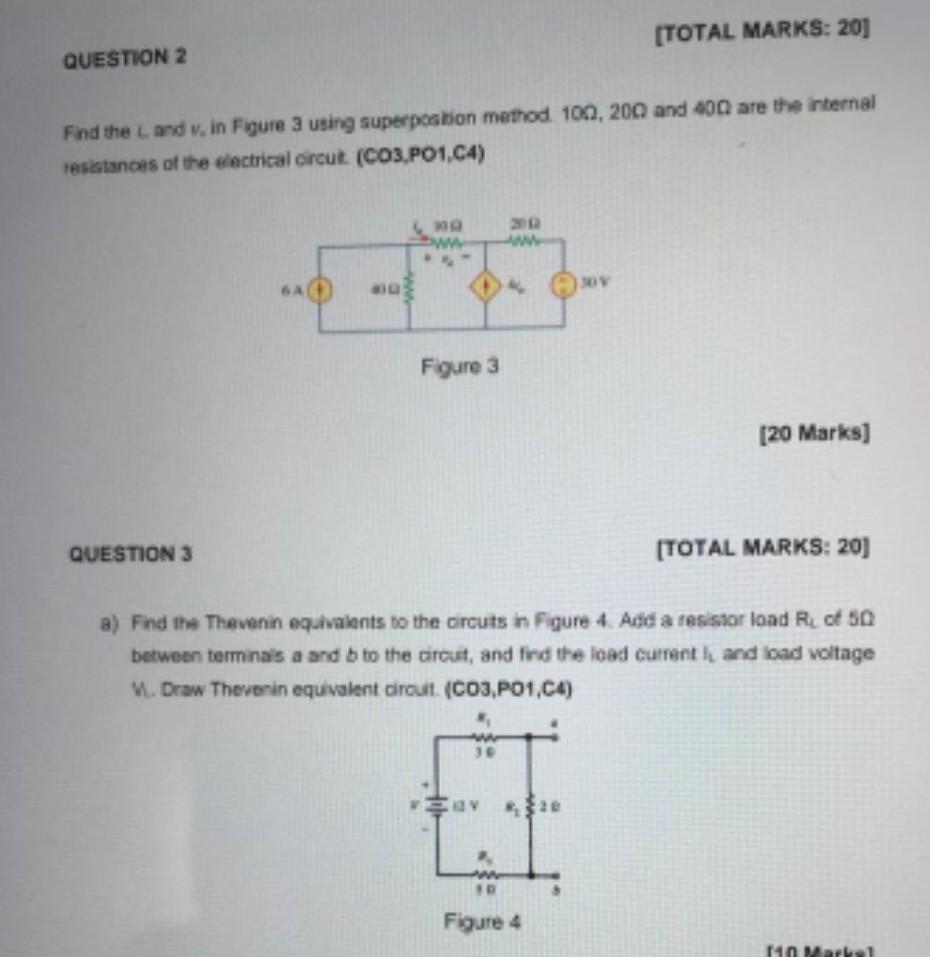

Total Marks 20 Question 2 Find The Landw In Figure 3 Using Superposition Method 100 200 And 400 Are The Internal Res 1 (56.75 KiB) Viewed 40 times

[TOTAL MARKS:20] QUESTION 2 Find the Landw, in Figure 3 using superposition method 100, 200 and 400 are the internal resistances of the electrical circut. (CO3,PO1,C4) ww w Figure 3 [20 Marks] QUESTION 3 [TOTAL MARKS: 20) a) Find the Thevenin equivalents to the circuts in Figure 4. Add a resistor load R of 50 between terminals a and to the circuit, and find the load current and load voltage M. Draw Thevenin equivalent circuit (CO3, PO1,C4) 30 av 10 HD Figure 4 110 Mark
