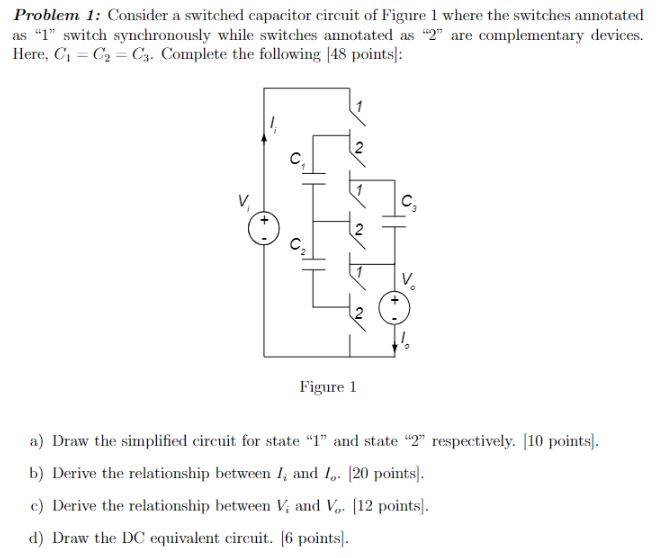

Problem 1: Consider a switched capacitor circuit of Figure 1 where the switches annotated as "1" switch synchronously while switches annotated as "2" are complementary devices. Here, C = C2 = C3. Complete the following (48 points]: 2 V C 2 V Figure 1 a) Draw the simplified circuit for state "1" and state "2" respectively. [10 points). b) Derive the relationship between l; and I, (20 points). c) Derive the relationship between V; and V [12 points). d) Draw the DC equivalent circuit. [6 points).
