2.75 Assuming £10-V power supplies as well as typi- cal BJT parameters in the circuit of Fig. P2.75, specify suitable st

[answerhappygod]

2 75 Assuming 10 V Power Supplies As Well As Typi Cal Bjt Parameters In The Circuit Of Fig P2 75 Specify Suitable St 1 (31.1 KiB) Viewed 17 times

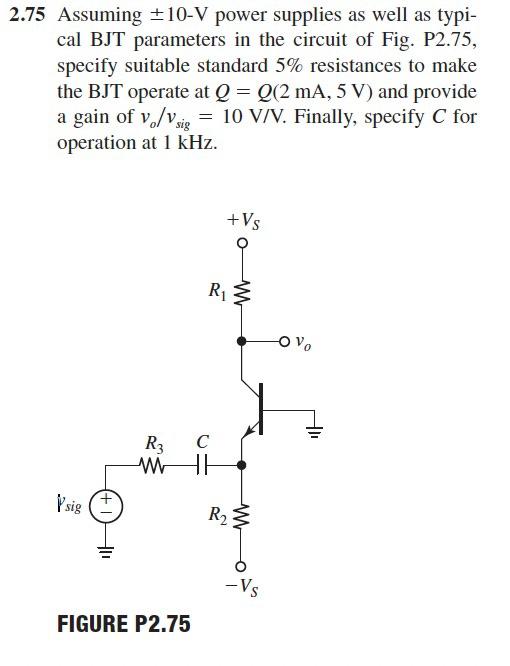

2.75 Assuming £10-V power supplies as well as typi- cal BJT parameters in the circuit of Fig. P2.75, specify suitable standard 5% resistances to make the BJT operate at Q = Q(2 mA, 5 V) and provide a gain of v/Vsig = 10 V/V. Finally, specify C for operation at 1 kHz. +VS R W OVO R3 w с HI Psig + R2 w -VS FIGURE P2.75
