A silicon-based NPN BJT is connected as shown below on the left, and its DC load line is shown on the right. Assuming th

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

A silicon-based NPN BJT is connected as shown below on the left, and its DC load line is shown on the right. Assuming th

Post by answerhappygod »

A Silicon Based Npn Bjt Is Connected As Shown Below On The Left And Its Dc Load Line Is Shown On The Right Assuming Th 1
A Silicon Based Npn Bjt Is Connected As Shown Below On The Left And Its Dc Load Line Is Shown On The Right Assuming Th 1 (52.77 KiB) Viewed 17 times

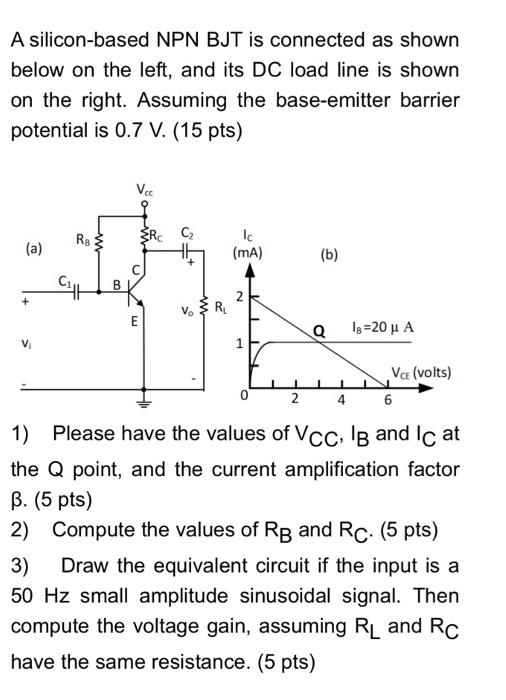

A silicon-based NPN BJT is connected as shown below on the left, and its DC load line is shown on the right. Assuming the base-emitter barrier potential is 0.7 V. (15 pts) Vcc RS C2 (a) Ic (mA) (b) B 00 B 2 + V. RR E Q Is=20 μΑ V 1 Vce (volts) 0 2 4 6 1) Please have the values of VCC, B and Ic at the Q point, and the current amplification factor B. (5 pts) 2) Compute the values of RB and Rc (5 pts) 3) Draw the equivalent circuit if the input is a 50 Hz small amplitude sinusoidal signal. Then compute the voltage gain, assuming RL and RC have the same resistance. (5 pts)
