Create-a-new-project-in-Packet-Tracer named Grouse."-Create the network pictured below. 1 In-R1.you will create-Port-Cha

[answerhappygod]

Create A New Project In Packet Tracer Named Grouse Create The Network Pictured Below 1 In R1 You Will Create Port Cha 1 (85.08 KiB) Viewed 32 times

TRY TO GET A SIMILAR DIAGRAM, PLEASE SHOW THE STEPS SO THAT THIS
CAN WORK! If something isn't right just figure out how it could
work or use some different.

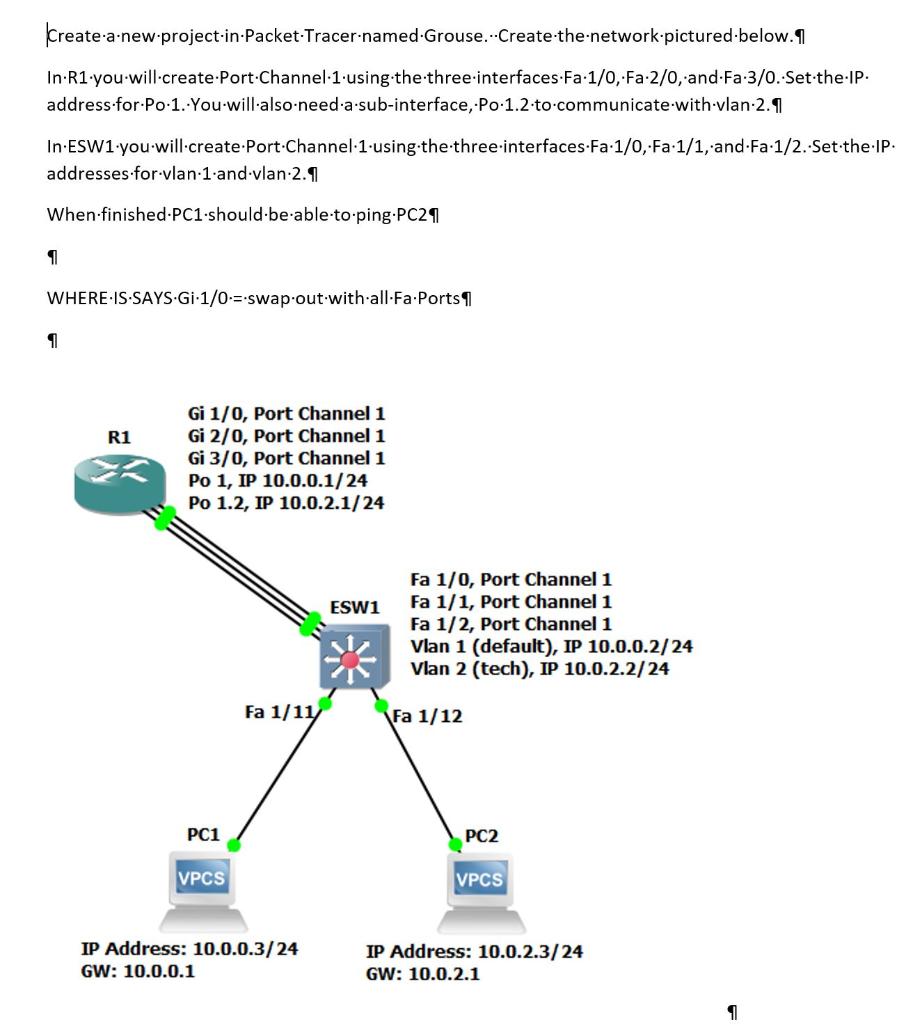

Create-a-new-project-in-Packet-Tracer named Grouse."-Create the network pictured below. 1 In-R1.you will create-Port-Channel 1 using the three-interfaces.Fa.1/0, Fa 2/0,-and-Fa-3/0.-Set-theIP. address-for-Po-1. You will also need-a-sub-interface, Po-1.2.to communicate with vlan-2.1 In-ESW1.you will create Port Channel 1 using the three interfaces.Fa:1/0, Fa 1/1, and-Fa:1/2. Set the IP. addresses for vlan.1.and.vlan 2.1 When finished-PC1.should be able to ping.PC21 1 WHERE IS-SAYS-Gi-1/0-=-swap out with all-Fa.Ports 1 R1 Gi 1/0, Port Channel 1 Gi 2/0, Port Channel 1 Gi 3/0, Port Channel 1 Po 1, IP 10.0.0.1/24 Po 1.2, IP 10.0.2.1/24 ESW1 Fa 1/0, Port Channel 1 Fa 1/1, Port Channel 1 Fa 1/2, Port Channel 1 Vlan 1 (default), IP 10.0.0.2/24 Vlan 2 (tech), IP 10.0.2.2/24 Fa 1/11 Fa 1/12 PC1 PC2 VPCS VPCS IP Address: 10.0.0.3/24 GW: 10.0.0.1 IP Address: 10.0.2.3/24 GW: 10.0.2.1
