From the given beam shown. Determine the equation of the deflection at any point. Use Double Integration. Note: 1. Indic

Post by answerhappygod »

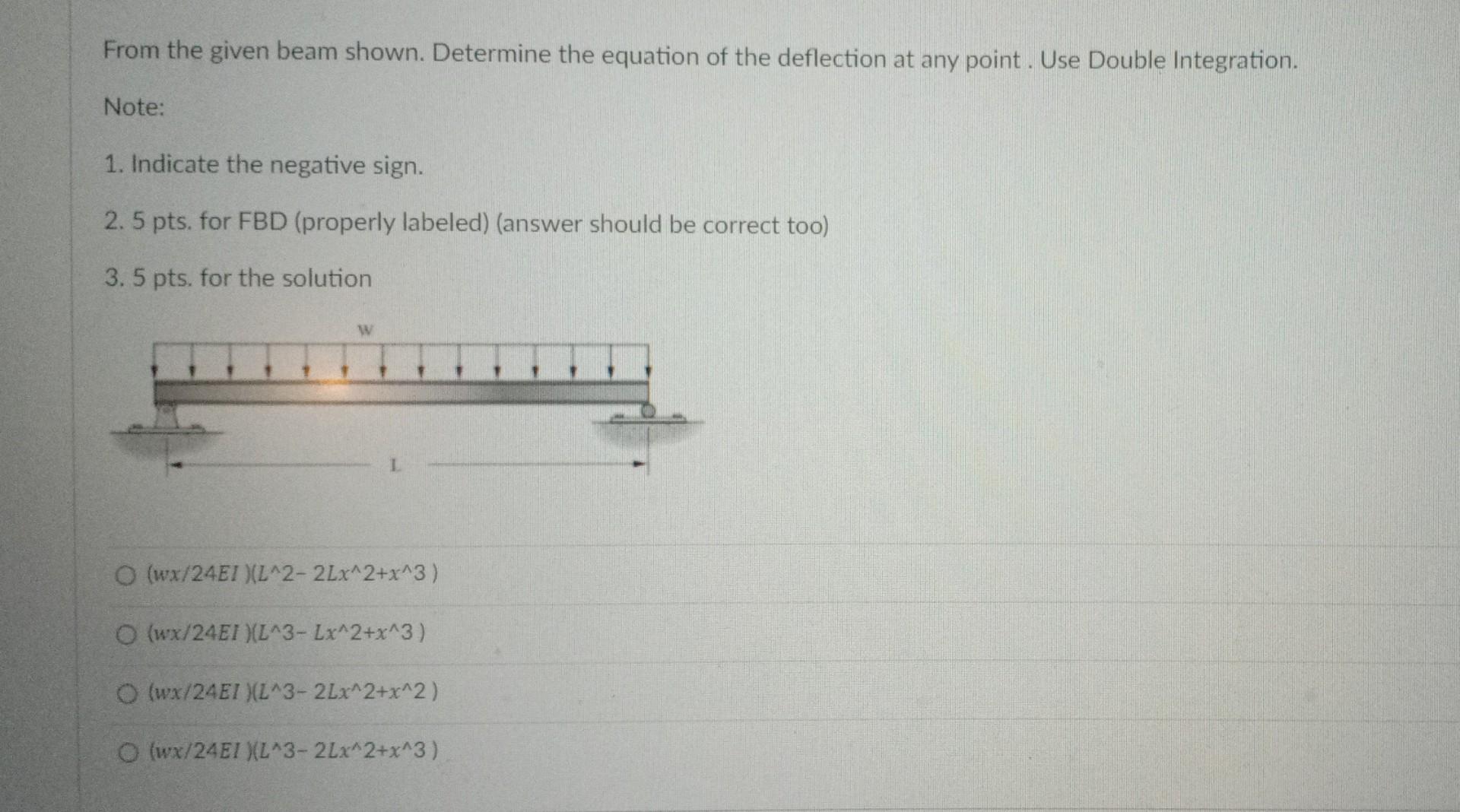

From The Given Beam Shown Determine The Equation Of The Deflection At Any Point Use Double Integration Note 1 Indic 1
From The Given Beam Shown Determine The Equation Of The Deflection At Any Point Use Double Integration Note 1 Indic 1 (242.75 KiB) Viewed 20 times
From the given beam shown. Determine the equation of the deflection at any point. Use Double Integration. Note: 1. Indicate the negative sign. 2.5 pts. for FBD (properly labeled) (answer should be correct too) 3.5 pts. for the solution w (wx/24E1 (L^2-2Lx^2+x^3 ) O (wx/24E1 )(L^3- Lx^2+x^3 ) (wx/24EI )(L^3-2Lx^2+x^2) (wx/24E1 XL^3-2Lx^2+x^3)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
