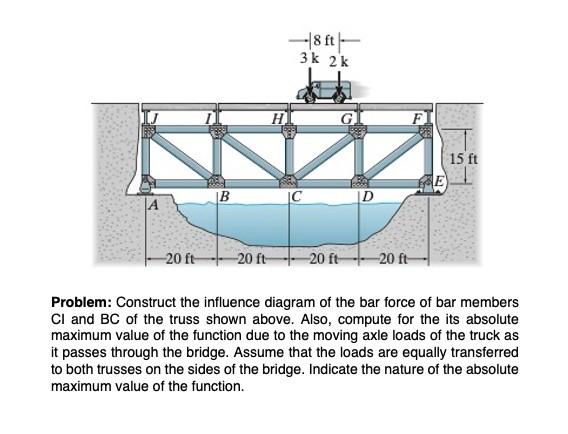

-- 8 ft- 3k 2k H F 15 ft E | В D 20 ft 20 ft -20 ft- +20 ft Problem: Construct the influence diagram of the bar force of bar members Cl and BC of the truss shown above. Also, compute for the its absolute maximum value of the function due to the moving axle loads of the truck as it passes through the bridge. Assume that the loads are equally transferred to both trusses on the sides of the bridge. Indicate the nature of the absolute maximum value of the function.
--8ft - 3k 2k H F 15 ft E ІВ C D -20 ft -20 ft -20 ft-1-20 ft Problem: Construct the influence diagram of the bar force of bar members Cl and BC of the truss shown above. Also, compute for the its absolute maximum value of the function due to the moving axle loads of the truck as it passes through the bridge. Assume that the loads are equally transferred to both trusses on the sides of the bridge. Indicate the nature of the absolute maximum value of the function.
