Find the dangerous cross-section of the beam of circular cross-section which is loaded as shown in the figure below, Che

Post by answerhappygod »

Find The Dangerous Cross Section Of The Beam Of Circular Cross Section Which Is Loaded As Shown In The Figure Below Che 1
Find The Dangerous Cross Section Of The Beam Of Circular Cross Section Which Is Loaded As Shown In The Figure Below Che 1 (60.14 KiB) Viewed 23 times

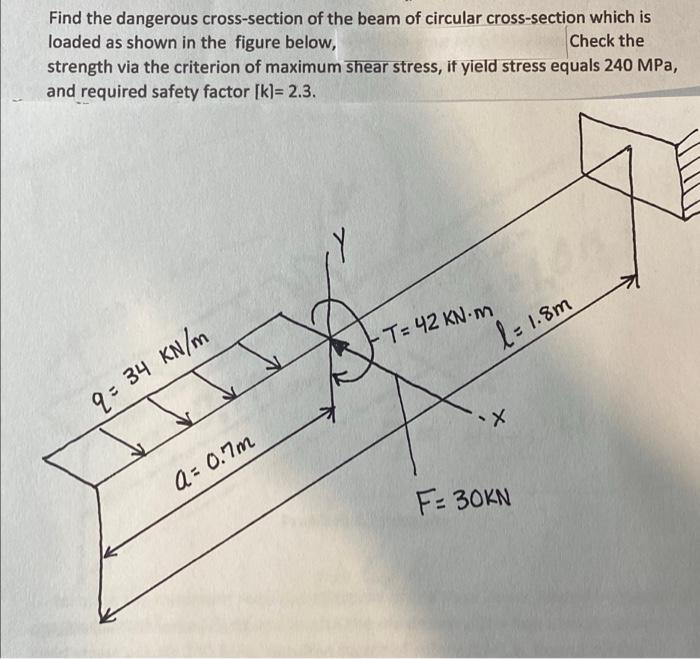

Find the dangerous cross-section of the beam of circular cross-section which is loaded as shown in the figure below, Check the strength via the criterion of maximum shear stress, if yield stress equals 240 MPa, and required safety factor [k)= 2.3. 7 T= 42 KN.m l = 1.8m 9 = 34 KN/m X a=0.7m F- 30KN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
