Question 2 Figure 2 shows the cross-section of a reinforced concrete column which for architectural reasons has the shap

[answerhappygod]

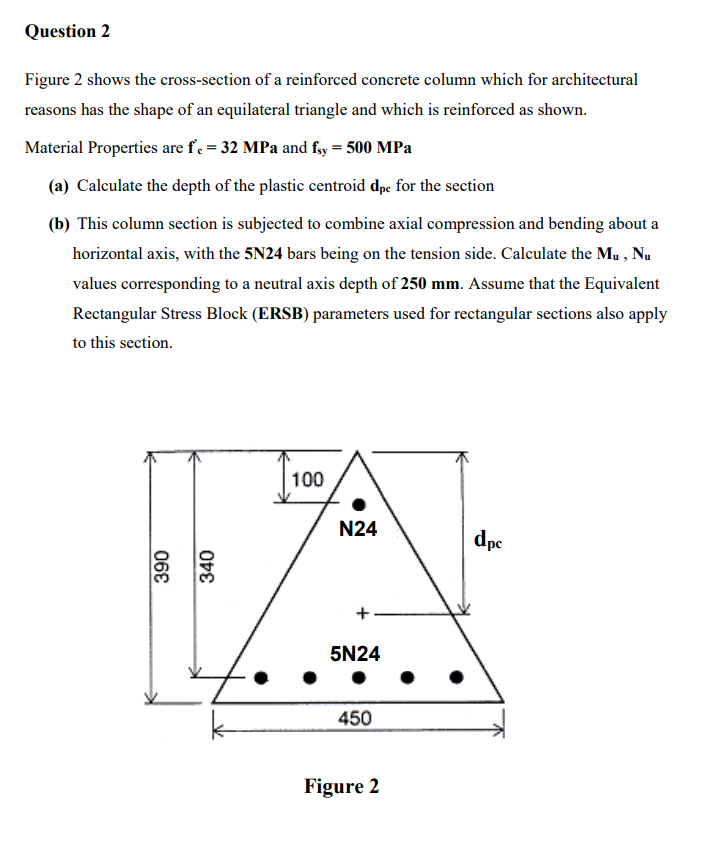

Question 2 Figure 2 Shows The Cross Section Of A Reinforced Concrete Column Which For Architectural Reasons Has The Shap 1 (124.75 KiB) Viewed 25 times

Question 2 Figure 2 shows the cross-section of a reinforced concrete column which for architectural reasons has the shape of an equilateral triangle and which is reinforced as shown. Material Properties are fe = 32 MPa and fsy = 500 MPa (a) Calculate the depth of the plastic centroid dpe for the section (b) This column section is subjected to combine axial compression and bending about a horizontal axis, with the 5N24 bars being on the tension side. Calculate the M. , N. values corresponding to a neutral axis depth of 250 mm. Assume that the Equivalent Rectangular Stress Block (ERSB) parameters used for rectangular sections also apply to this section. 100 N24 dpc 5N24 450 Figure 2
