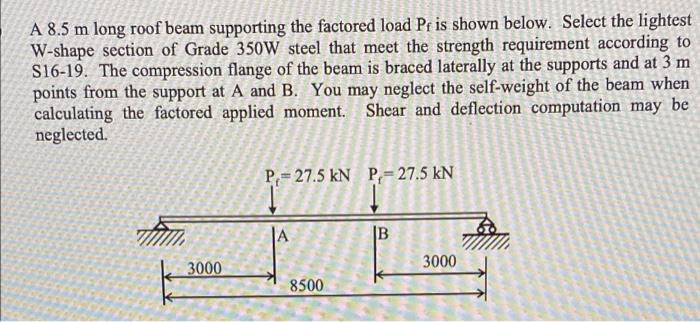

A 8.5 m long roof beam supporting the factored load Pr is shown below. Select the lightest W-shape section of Grade 350W steel that meet the strength requirement according to S16-19. The compression flange of the beam is braced laterally at the supports and at 3 m points from the support at A and B. You may neglect the self-weight of the beam when calculating the factored applied moment. Shear and deflection computation may be neglected. P=27.5 kN P=27.5 kN पगि |В 3000 3000 8500
