Calculate the factored tension load Tf that can be carried by the two connections shown below according to S16-19. The a

Post by answerhappygod »

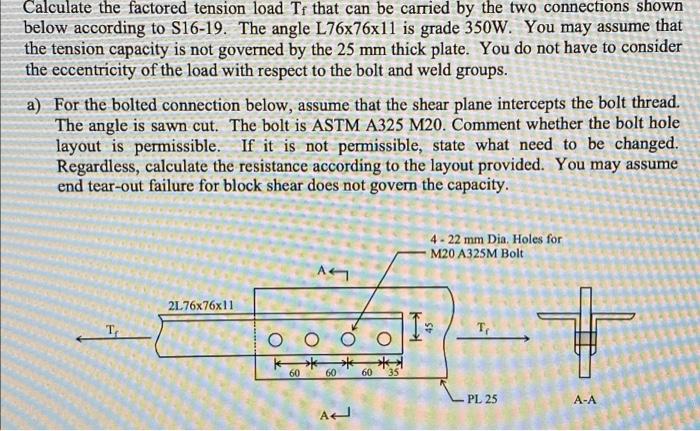

Calculate The Factored Tension Load Tf That Can Be Carried By The Two Connections Shown Below According To S16 19 The A 1
Calculate The Factored Tension Load Tf That Can Be Carried By The Two Connections Shown Below According To S16 19 The A 1 (76.78 KiB) Viewed 23 times
Calculate the factored tension load Tf that can be carried by the two connections shown below according to S16-19. The angle L76x76x11 is grade 350W. You may assume that the tension capacity is not governed by the 25 mm thick plate. You do not have to consider the eccentricity of the load with respect to the bolt and weld groups. a) For the bolted connection below, assume that the shear plane intercepts the bolt thread. The angle is sawn cut. The bolt is ASTM A325 M20. Comment whether the bolt hole layout is permissible. If it is not permissible, state what need to be changed. Regardless, calculate the resistance according to the layout provided. You may assume end tear-out failure for block shear does not govern the capacity. bolt and we 4 - 22 mm Dia Holes for M20 A325M Bolt AN 2L76x76x11 T TE I T, ооо * 60 60 60 35 PL 25 A-A A
