5 kN/m 4. Determine the horizontal displacement of point i on the frame shown in the figure. Take E = 200 GPa, G = 80 GP

Post by answerhappygod »

5 Kn M 4 Determine The Horizontal Displacement Of Point I On The Frame Shown In The Figure Take E 200 Gpa G 80 Gp 1
5 Kn M 4 Determine The Horizontal Displacement Of Point I On The Frame Shown In The Figure Take E 200 Gpa G 80 Gp 1 (21.44 KiB) Viewed 20 times

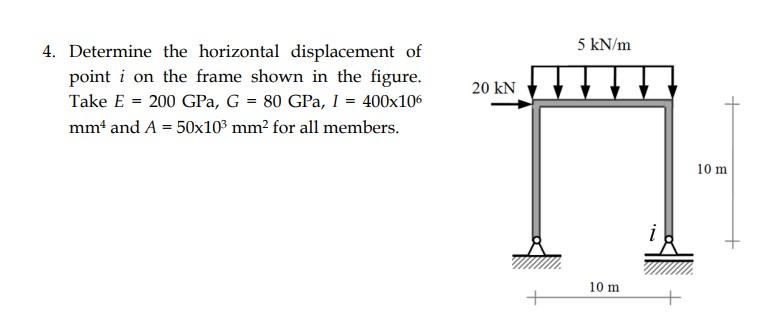

5 kN/m 4. Determine the horizontal displacement of point i on the frame shown in the figure. Take E = 200 GPa, G = 80 GPa, I = 400x106 mm+ and A = 50x103 mm2 for all members. 20 KN 10 m i 10 m
