3. (30 points) For the loaded beam below, complete the following: a. Calculate all reaction forces at A and C. b. Determ
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. (30 points) For the loaded beam below, complete the following: a. Calculate all reaction forces at A and C. b. Determ

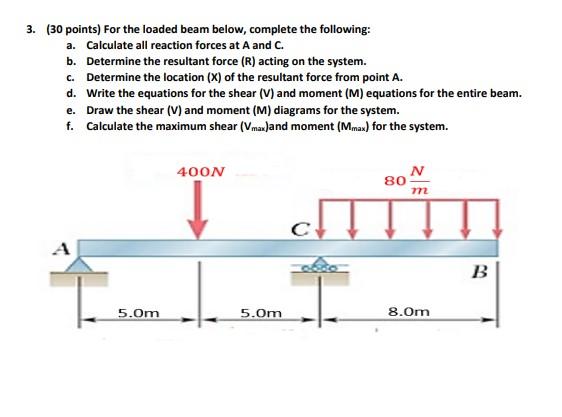

3. (30 points) For the loaded beam below, complete the following: a. Calculate all reaction forces at A and C. b. Determine the resultant force (R) acting on the system. c. Determine the location (X) of the resultant force from point A. d. Write the equations for the shear (V) and moment (M) equations for the entire beam. e. Draw the shear (V) and moment (M) diagrams for the system. f. Calculate the maximum shear (Vmax)and moment (Mmax) for the system. 400N N 80 m B 5.Om 5.Om 8.Om
