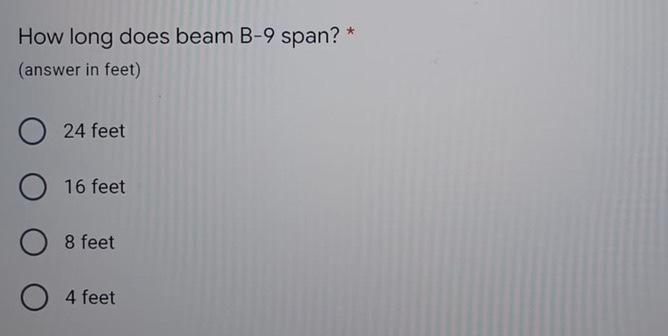

* How long does beam B-9 span? (answer in feet) 24 feet O 16 feet 8 feet 4 feet

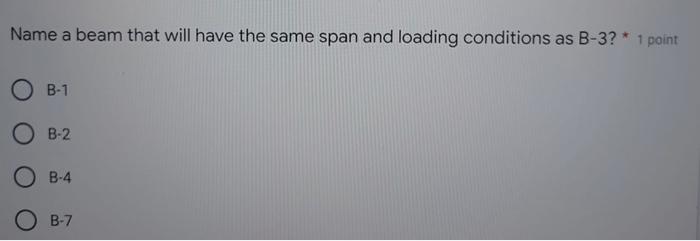

Name a beam that will have the same span and loading conditions as B-3? * 1 point OB-1 O B-2 B-4 O B7
What type of load does beam B-9 have? uniform point none of the above

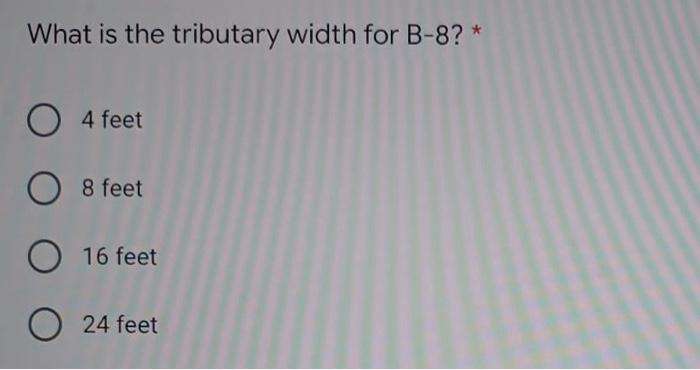

What is the tributary width for B-8?* 4 feet 8 feet 8 O 16 feet O 24 feet

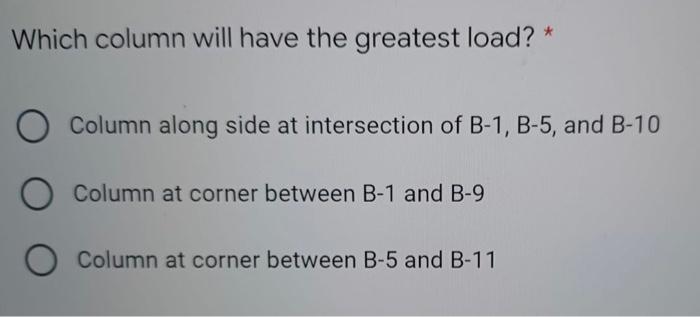

Which column will have the greatest load? О Column along side at intersection of B-1, B-5, and B-10 O B Column at corner between B-1 and B-9 O 5 Column at corner between B-5 and B-11

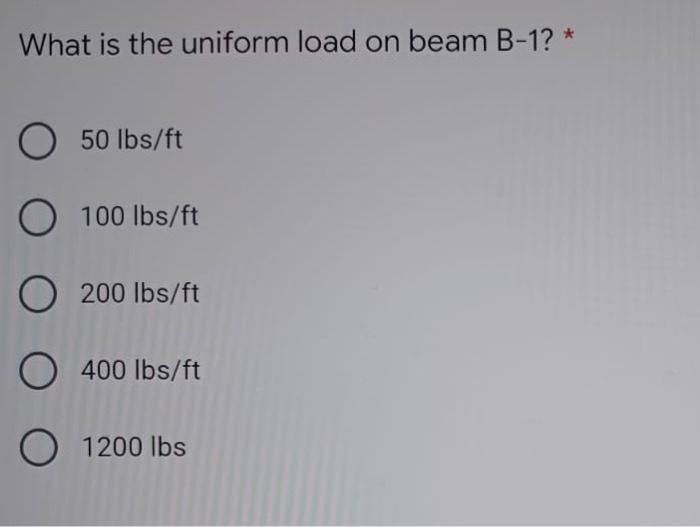

What is the uniform load on beam B-1? * O 50 lbs/ft O 100 lbs/ft O 200 lbs/ft O 400 lbs/ft O 1200 lbs

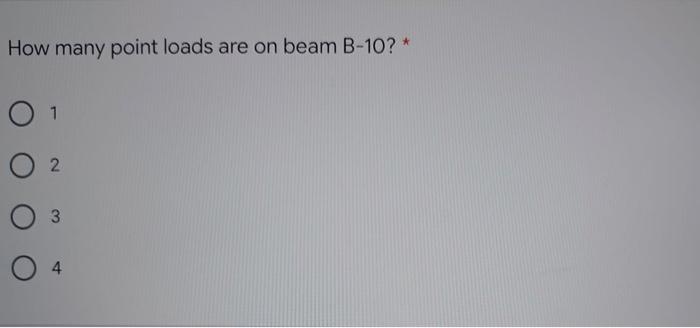

How many point loads are on beam B-10?* 1 2. 3 О 4
What type of load does beam B-5 have?* uniform O point none of the above
* How far does beam B-1 span? (answer in feet) O 4 feet 16 feet 8 feet 24 feet
ONE

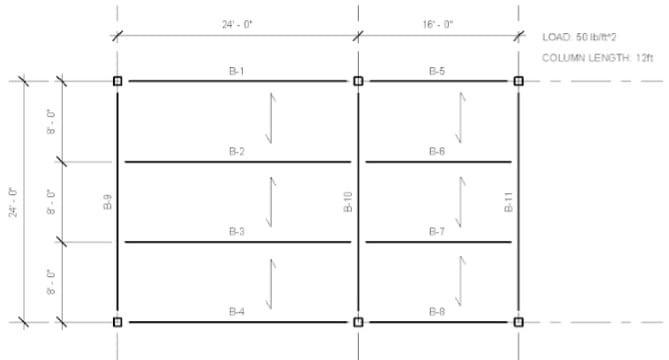

24.0 16.0 LOAD 501/12 COLUMN LENGTH 1201 B-1 B-5 D .08 B-2 B-6 8 - 0 B-10 B.11 B-3 B-7 -0-8 B-8
