A 200 m sag curve connects a downhill grade of - 4% and an uphill grade of + 4% is designed for 80km/h. The grade lines
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
A 200 m sag curve connects a downhill grade of - 4% and an uphill grade of + 4% is designed for 80km/h. The grade lines

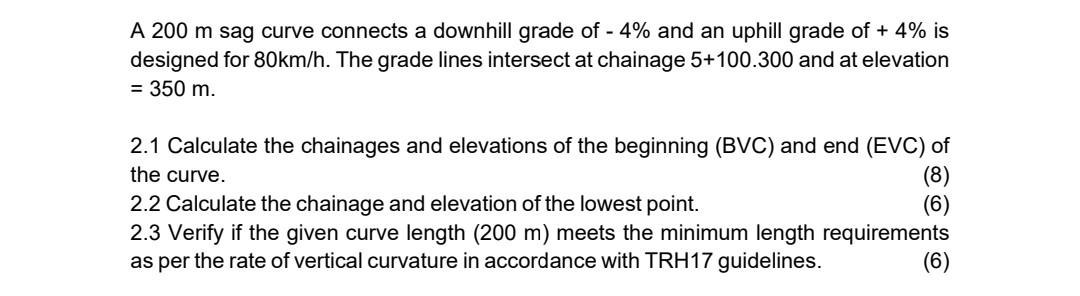

A 200 m sag curve connects a downhill grade of - 4% and an uphill grade of + 4% is designed for 80km/h. The grade lines intersect at chainage 5+100.300 and at elevation = 350 m. 2.1 Calculate the chainages and elevations of the beginning (BVC) and end (EVC) of the curve. (8) 2.2 Calculate the chainage and elevation of the lowest point. (6) 2.3 Verify if the given curve length (200 m) meets the minimum length requirements as per the rate of vertical curvature in accordance with TRH17 guidelines. (6)
