2. The principal load bearing structure for a proposed bariatric hoist is shown in figure Q2-1, and consists of a pin-jo

Post by answerhappygod »

2 The Principal Load Bearing Structure For A Proposed Bariatric Hoist Is Shown In Figure Q2 1 And Consists Of A Pin Jo 1
2 The Principal Load Bearing Structure For A Proposed Bariatric Hoist Is Shown In Figure Q2 1 And Consists Of A Pin Jo 1 (112.43 KiB) Viewed 28 times

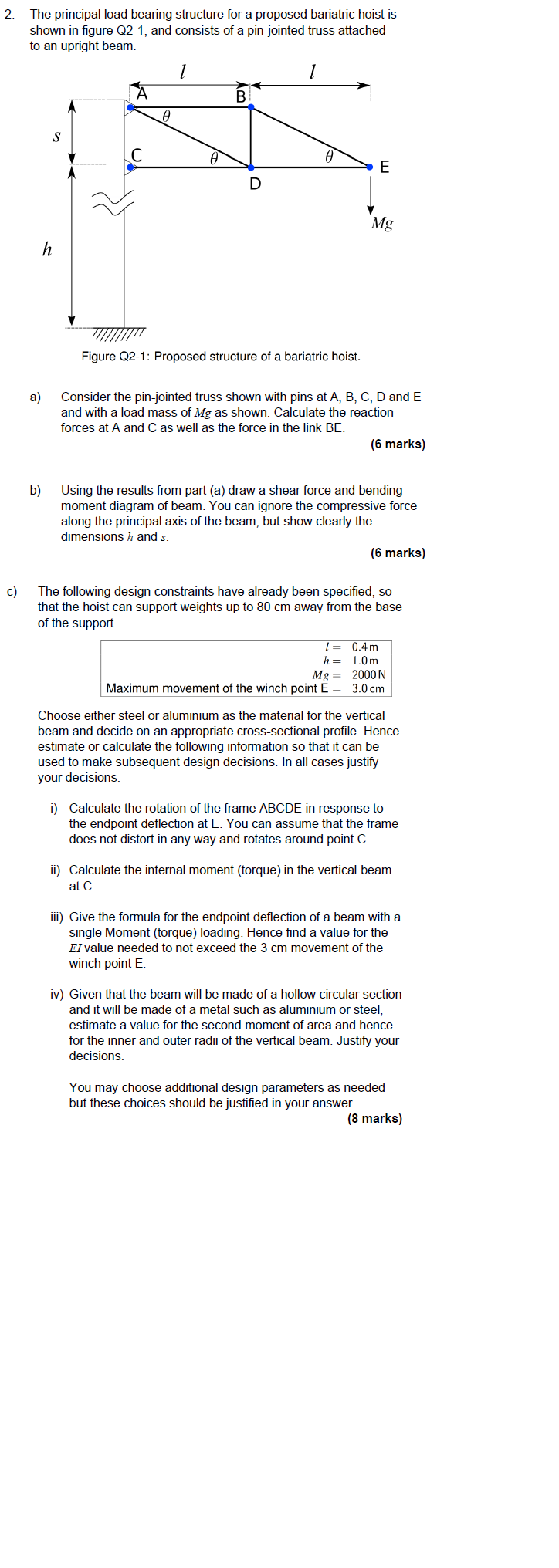

2. The principal load bearing structure for a proposed bariatric hoist is shown in figure Q2-1, and consists of a pin-jointed truss attached to an upright beam. A B S C A E D Mg h Figure Q2-1: roposed structure of a bariatric hoist. a) Consider the pin-jointed truss shown with pins at A, B, C, D and E and with a load mass of Mg as shown. Calculate the reaction forces at A and C as well as the force in the link BE. (6 marks) b) Using the results from part (a) draw a shear force and bending moment diagram of beam. You can ignore the compressive force along the principal axis of the beam, but show clearly the dimensions h and s. (6 marks) C) The following design constraints have already been specified, so that the hoist can support weights up to 80 cm away from the base of the support. I= 0.4m h= 1.0m Mg = 2000N Maximum movement of the winch point E = 3.0 cm Choose either steel or aluminium as the material for the vertical beam and decide on an appropriate cross-sectional profile. Hence estimate or calculate the following information so that it can be used to make subsequent design decisions. In all cases justify your decisions. i) Calculate the rotation of the frame ABCDE in response to the endpoint deflection at E. You can assume that the frame does not distort in any way and rotates around point C. ii) Calculate the internal moment (torque) in the vertical beam at C iii) Give the formula for the endpoint deflection of a beam with a single Moment (torque) loading. Hence find a value for the El value needed to not exceed the 3 cm movement of the winch point E iv) Given that the beam will be made of a hollow circular section and it will be made of a metal such as aluminium or steel, estimate a value for the second moment of area and hence for the inner and outer radii of the vertical beam. Justify your decisions. You may choose additional design parameters as needed but these choices should be justified in your answer. (8 marks)
