1. Using portal method, analyse the frame shown in figure 3 bending moment and axial force in all members. 2. Show the r

Post by answerhappygod »

1 Using Portal Method Analyse The Frame Shown In Figure 3 Bending Moment And Axial Force In All Members 2 Show The R 1
1 Using Portal Method Analyse The Frame Shown In Figure 3 Bending Moment And Axial Force In All Members 2 Show The R 1 (424.81 KiB) Viewed 29 times

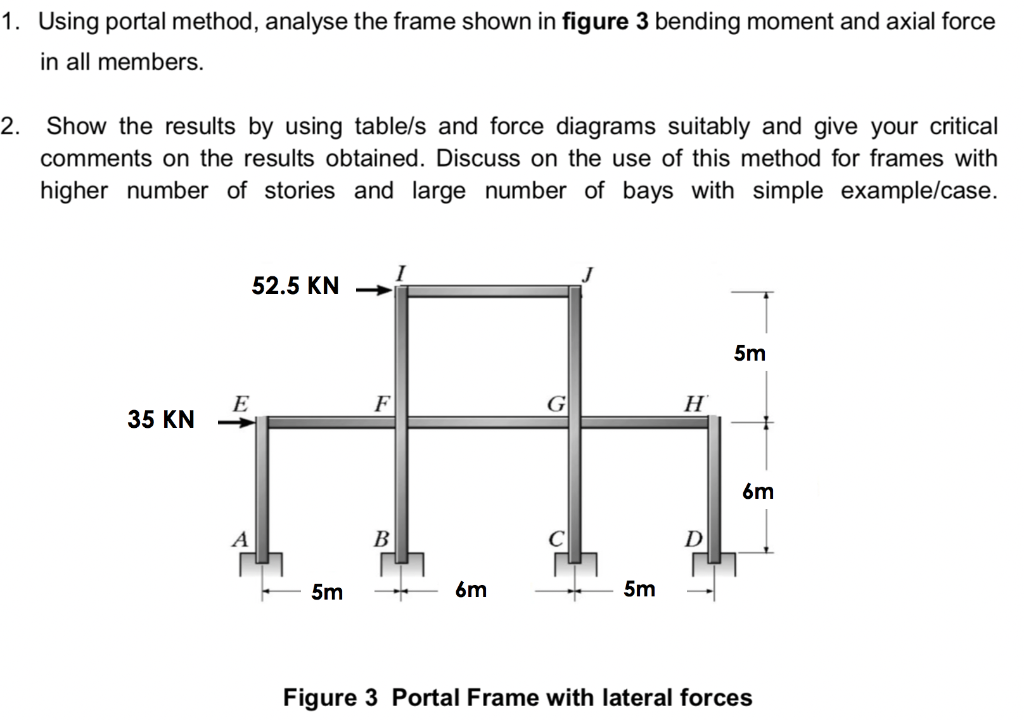

1. Using portal method, analyse the frame shown in figure 3 bending moment and axial force in all members. 2. Show the results by using table/s and force diagrams suitably and give your critical comments on the results obtained. Discuss on the use of this method for frames with higher number of stories and large number of bays with simple example/case. 52.5 KN 5m E F G H 35 KN 1 Thi 6m А B D 5m 6m 5m Figure 3 Portal Frame with lateral forces
