Design a square shape reinforced concrete column to withstand
the following dead and live imposed loads:

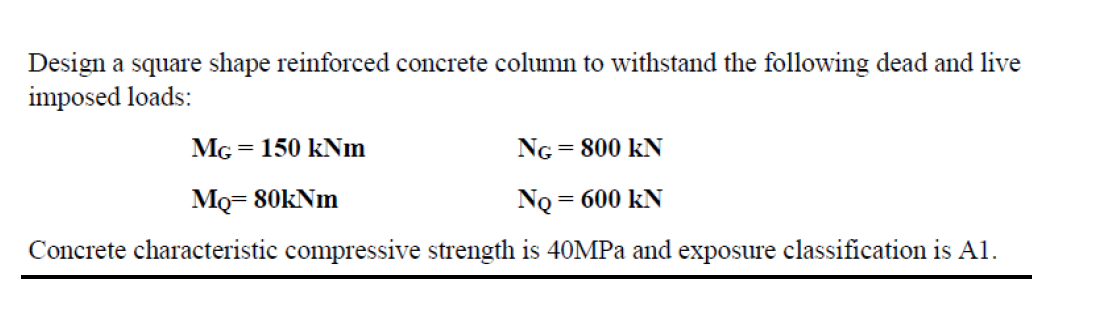

Design A Square Shape Reinforced Concrete Column To Withstand The Following Dead And Live Imposed Loads Concrete Charac 1 (88.61 KiB) Viewed 51 times
Concrete characteristic compressive strength is 40MPa and
exposure classification is A1 (requires a minimum 20mm cover in
steel reinforcement)
The answer is to be completed to AS 3600:2018 standard.
Design a square shape reinforced concrete column to withstand the following dead and live imposed loads: MG = 150 kNm = NG = 800 KN Mo= 80kNm = NQ = 600 KN Concrete characteristic compressive strength is 40MPa and exposure classification is Al.
