Problem 2: Virtual Work Method b) Draw the axial, shear and bending moment diagrams of the frame. Using the virtual work
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Problem 2: Virtual Work Method b) Draw the axial, shear and bending moment diagrams of the frame. Using the virtual work

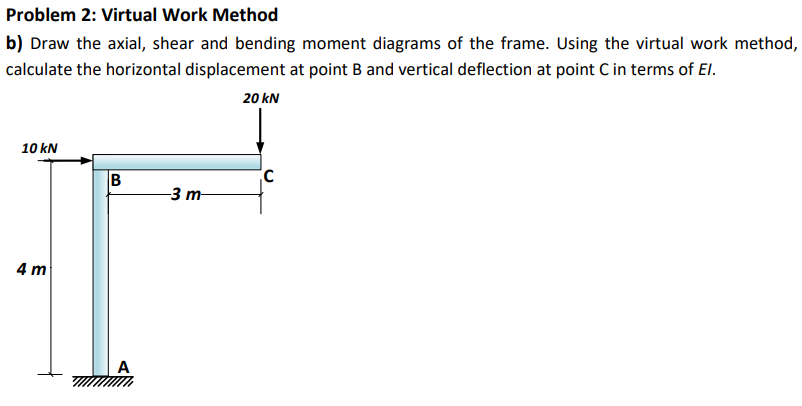

Problem 2: Virtual Work Method b) Draw the axial, shear and bending moment diagrams of the frame. Using the virtual work method, calculate the horizontal displacement at point B and vertical deflection at point C in terms of El. 20 KN 10 KN B с -3 m 4 m А
