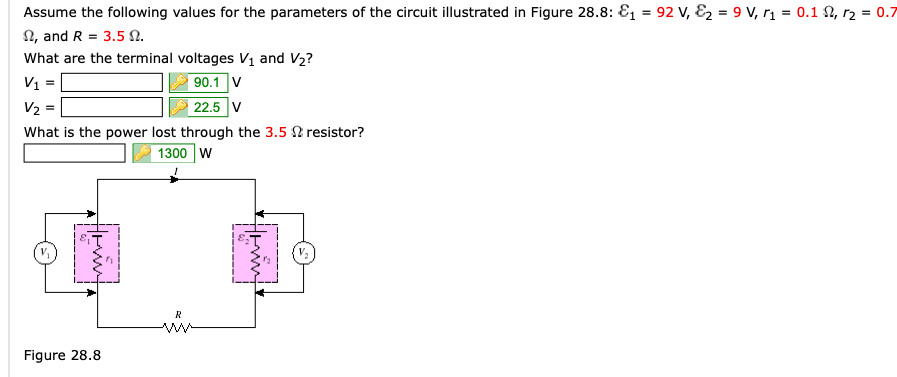

Assume the following values for the parameters of the circuit illustrated in Figure 28.8:ε1=92 V1ε2=9 V,r1=0.1Ω,r2=
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Assume the following values for the parameters of the circuit illustrated in Figure 28.8:ε1=92 V1ε2=9 V,r1=0.1Ω,r2=
Assume the following values for the parameters of the circuit illustrated in Figure 28.8:ε1=92 V1ε2=9 V,r1=0.1Ω,r2=0.7 Ω, and R=3.5Ω. What are the terminal voltages V1 and V2 ? V1=V2=VV What is the power lost through the 3.5Ω resistor? W Figure 28.8
