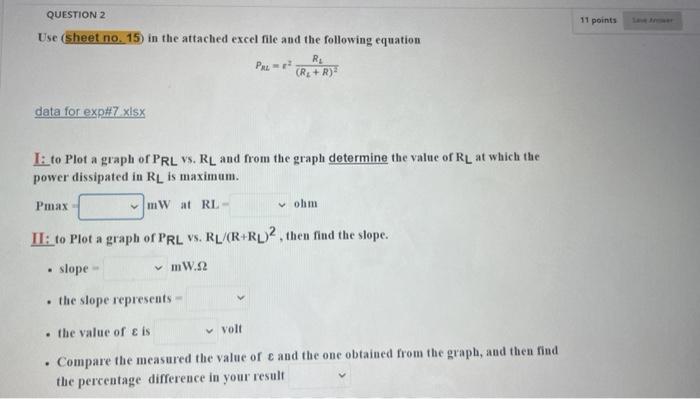

Use (Sheet no. 15) in the attached excel file and the following equation PML=r2(RL+R)2RL data for exply7.xisx I: to Plot a graph of PRL vs. RL and from the graph determine the value of RL at which the power dissipated in RL is maximum.

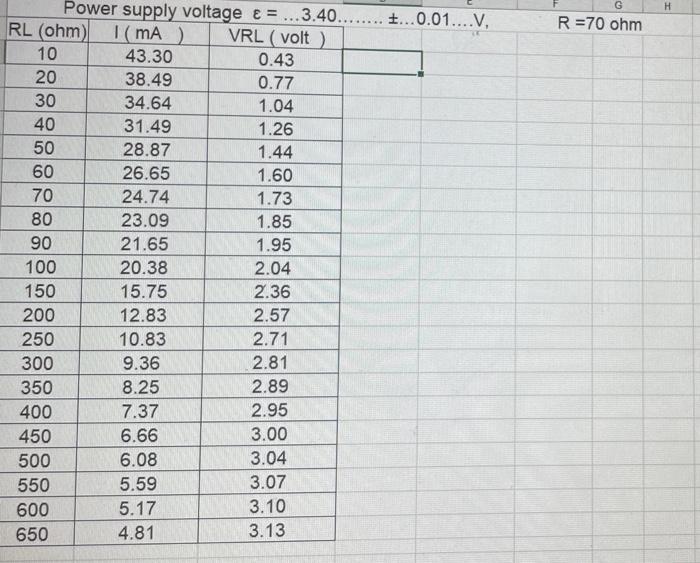

Power supply voltage ε=…3.40 ±…0.01….V R=70ohm
